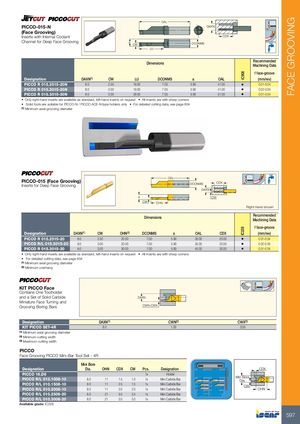

PICCO-015-N DAXN Inserts with Internal Coolant CDX
Channel for Deep Face Grooving
a DCONMS CW LU
| Di | mensions | Recommended Machining Data | ||||||
| Designation | DAXN(1) | CW | LU | DCONMS | a | OAL | IC908 | f face-groove (mm/rev) |
| PICCO R 015.2515-20N | 8.0 | 2.50 | 19.00 | 7.05 | 5.90 | 41.00 | • | 0.01-0.04 |
| PICCO R 015.3015-20N | 8.0 | 3.00 | 19.00 | 7.05 | 5.90 | 41.00 | • | 0.02-0.05 |
| PICCO R 015.3015-30N | 8.0 | 3.00 | 29.00 | 7.05 | 5.90 | 51.00 | • | 0.01-0.04 |
- Only right-hand inserts are available as standard, left-hand inserts on request
- All inserts are with sharp corners
- Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
- For detailed cutting data, see page 604
(1) Minimum axial grooving diameter
OAL
PICCO-015 (Face Grooving)
Inserts for Deep Face Grooving DCONMS CDX
DAXN a CW CW OHN Right-hand shown
Recommended
Dimensions
Machining Data
f face-groove
| Designation | DAXN(1) | CW | OHN(2) | DCONMS | a | OAL | CDX | (mm/rev) | ||
| PICCO R 015.2515-20 | 8.0 | 2.50 | 20.00 | 7.00 | 5.90 | 35.00 | 20.00 | • | 0.01-0.04 | |
| PICCO R/L 015.3015-20 | 8.0 | 3.00 | 20.00 | 7.00 | 5.90 | 35.00 | 20.00 | • | 0.02-0.05 | |
| PICCO R 015.3015-30 | 8.0 | 3.00 | 30.00 | 7.00 | 5.90 | 45.00 | 30.00 | • | 0.01-0.04 |
- Only right-hand inserts are available as standard, left-hand inserts on request
- All inserts are with sharp corners
- For detailed cutting data, see page 604
(1) Minimum axial grooving diameter (2) Minimum overhang
KITS
KIT PICCO Face
Contains One Toolholder
and a Set of Solid Carbide DAXN
Miniature Face Turning and
Grooving Boring Bars CWN-CWX
| Designation | DAXN(1) | CWN(2) | CWX(3) |
| KIT PICCO SET-4R | 8.0 | 1.00 | 3.00 |
(1) Minimum axial grooving diameter (2) Minimum cutting width (3) Maximum cutting width PICCO
Face Grooving PICCO Mini-Bar Tool Set - 4R
| Designation | Mini Bore Dia. | OHN | CDX | CW | Pcs. | Designation |
| PICCO 16.D6 | 1x | Holder | ||||
| PICCO R/L 010.1008-10 | 8.0 | 11 | 1.5 | 1.0 | 1x | Mini Carbide Bar |
| PICCO R/L 010.1508-10 | 8.0 | 11 | 2.5 | 1.5 | 1x | Mini Carbide Bar |
| PICCO R/L 010.2008-10 | 8.0 | 11 | 3.0 | 2.0 | 1x | Mini Carbide Bar |
| PICCO R/L 010.2508-20 | 8.0 | 21 | 3.5 | 2.5 | 1x | Mini Carbide Bar |
| PICCO R/L 010.3008-20 | 8.0 | 21 | 3.5 | 3.0 | 1x | Mini Carbide Bar |
| Available grade:IC228 |
CW
