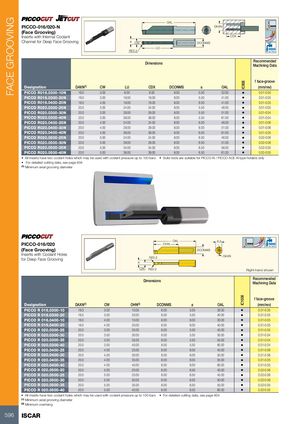

FACE GROOVING IC908IC1008 OAL PICCO-016/020-N DAXN (Face Grooving) Inserts with Internal Coolant CDX Channel for Deep Face Grooving a CW DCONMS LU RE0.2 Bar Max Dimensions RecommendedMachining Data f face-groove Designation DAXN(1) CW LU CDX DCONMS a OAL (mm/rev) PICCO R016.0300-10N 16.0 3.00 9.00 9.00 8.00 5.50 32.00 • 0.01-0.05 PICCO R016.0300-20N 16.0 3.00 19.00 19.00 8.00 5.50 41.00 • 0.01-0.05 PICCO R016.0400-20N 16.0 4.00 19.00 19.00 8.00 6.00 41.00 • 0.01-0.05 PICCO R020.0300-25N 20.0 3.00 24.00 24.00 8.00 5.50 46.00 • 0.01-0.05 PICCO R020.0300-30N 20.0 3.00 29.00 29.00 8.00 5.50 51.00 • 0.01-0.04 PICCO R020.0300-40N 20.0 3.00 39.00 39.00 8.00 5.50 61.00 • 0.01-0.04 PICCO R020.0400-25N 20.0 4.00 24.00 24.00 8.00 6.00 46.00 • 0.01-0.06 PICCO R020.0400-30N 20.0 4.00 29.00 29.00 8.00 6.00 51.00 • 0.01-0.06 PICCO R020.0400-40N 20.0 4.00 39.00 39.00 8.00 6.00 61.00 • 0.01-0.05 PICCO R020.0500-25N 20.0 5.00 24.00 24.00 8.00 6.50 46.00 • 0.02-0.06 PICCO R020.0500-30N 20.0 5.00 29.00 29.00 8.00 6.50 51.00 • 0.02-0.06 PICCO R020.0500-35N 20.0 5.00 34.00 34.00 8.00 6.50 56.00 • 0.02-0.05 PICCO R020.0500-40N 20.0 5.00 39.00 39.00 8.00 6.50 61.00 • 0.02-0.05 • All inserts have two coolant holes which may be used with coolant pressure up to 100 bars • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only • For detailed cutting data, see page 604 (1) Minimum axial grooving diameter OAL 6.3 PICCO-016/020 OHN Bar Max (Face Grooving) DCONMS Inserts with Coolant Holesfor Deep Face Grooving RE0.2 DAXN a CW RE0.2 Right-hand shown Dimensions RecommendedMachining Data f face-groove Designation DAXN(1) CW OHN(2) DCONMS a OAL (mm/rev) PICCO R 016.0300-10 16.0 3.00 10.00 8.00 5.50 30.00 • 0.01-0.05 PICCO R 016.0300-20 16.0 3.00 20.00 8.00 5.50 40.00 • 0.01-0.05 PICCO R 016.0400-10 16.0 4.00 10.00 8.00 6.00 30.00 • 0.01-0.05 PICCO R 016.0400-20 16.0 4.00 20.00 8.00 6.00 40.00 • 0.01-0.05 PICCO R 020.0300-25 20.0 3.00 25.00 8.00 5.50 45.00 • 0.01-0.05 PICCO R 020.0300-30 20.0 3.00 30.00 8.00 5.50 50.00 • 0.01-0.04 PICCO R 020.0300-35 20.0 3.00 35.00 8.00 5.50 55.00 • 0.01-0.04 PICCO R 020.0300-40 20.0 3.00 40.00 8.00 5.50 60.00 • 0.01-0.04 PICCO R 020.0400-25 20.0 4.00 25.00 8.00 6.00 45.00 • 0.01-0.06 PICCO R 020.0400-30 20.0 4.00 30.00 8.00 6.00 50.00 • 0.01-0.06 PICCO R 020.0400-35 20.0 4.00 35.00 8.00 6.00 55.00 • 0.01-0.05 PICCO R 020.0400-40 20.0 4.00 40.00 8.00 6.00 60.00 • 0.01-0.05 PICCO R 020.0500-20 20.0 5.00 20.00 8.00 6.50 40.00 • 0.02-0.06 PICCO R 020.0500-25 20.0 5.00 25.00 8.00 6.50 45.00 • 0.02-0.06 PICCO R 020.0500-30 20.0 5.00 30.00 8.00 6.50 50.00 • 0.02-0.06 PICCO R 020.0500-35 20.0 5.00 35.00 8.00 6.50 55.00 • 0.02-0.05 PICCO R 020.0500-40 20.0 5.00 40.00 8.00 6.50 60.00 • 0.02-0.05 • All inserts have two coolant holes which may be used with coolant pressure up to 100 bars • For detailed cutting data, see page 604 (1) Minimum axial grooving diameter (2) Minimum overhang 596 ISCAR
