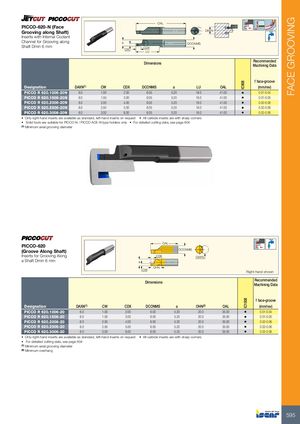

IC908IC1008 FACE GROOVING OAL PICCO-620-N (Face Grooving along Shaft) DAXN Inserts with Internal Coolant Channel for Grooving along a DCONMS Shaft Dmin 6 mm CW CDXLU Dimensions RecommendedMachining Data f face-groove Designation DAXN(1) CW CDX DCONMS a LU OAL (mm/rev) PICCO R 620.1006-20N 6.0 1.00 2.00 6.05 5.20 19.0 41.00 • 0.01-0.04 PICCO R 620.1506-20N 6.0 1.50 3.00 6.05 5.20 19.0 41.00 • 0.01-0.05 PICCO R 620.2006-20N 6.0 2.00 4.00 6.05 5.20 19.0 41.00 • 0.02-0.06 PICCO R 620.2506-20N 6.0 2.50 5.00 6.05 5.20 19.0 41.00 • 0.02-0.06 PICCO R 620.3006-20N 6.0 3.00 6.00 6.05 5.20 19.0 41.00 • 0.02-0.06 • Only right-hand inserts are available as standard, left-hand inserts on request • All carbide inserts are with sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only • For detailed cutting data, see page 604 (1) Minimum axial grooving diameter PICCO-620 OAL (Groove Along Shaft) DCONMS Inserts for Grooving Along CDX DAXN a Shaft Dmin 6 mm a OHN CW Right-hand shown Dimensions RecommendedMachining Data f face-groove Designation DAXN(1) CW CDX DCONMS a OHN(2) OAL (mm/rev) PICCO R 620.1006-20 6.0 1.00 2.00 6.00 5.20 20.0 35.00 • 0.01-0.04 PICCO R 620.1506-20 6.0 1.50 3.00 6.00 5.20 20.0 35.00 • 0.01-0.05 PICCO R 620.2006-20 6.0 2.00 4.00 6.00 5.20 20.0 35.00 • 0.02-0.06 PICCO R 620.2506-20 6.0 2.50 5.00 6.00 5.20 20.0 35.00 • 0.02-0.06 PICCO R 620.3006-20 6.0 3.00 6.00 6.00 5.20 20.0 35.00 • 0.02-0.06 • Only right-hand inserts are available as standard, left-hand inserts on request • All carbide inserts are with sharp corners • For detailed cutting data, see page 604 (1) Minimum axial grooving diameter (2) Minimum overhang 595
