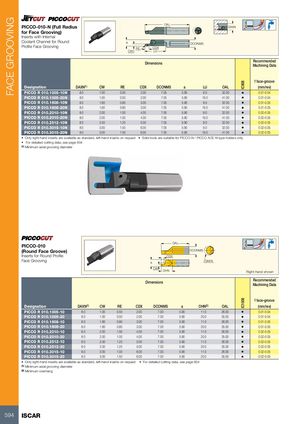

Каталог Iscar отрезка 2022 - страница 136

FACE GROOVING
OAL
PICCO-010-N (Full Radius DAXN
for Face Grooving)
Inserts with Internal
Coolant Channel for Round a DCONMS
Profile Face Grooving RE CDX
CW LU

Recommended
Dimensions
Machining Data

f face-groove


IC908
Designation DAXN(1) CW RE CDX DCONMS a LU OAL (mm/rev)
PICCO R 010.1005-10N 8.0 1.00 0.50 2.00 7.05 5.90 9.0 32.00 • 0.01-0.04
PICCO R 010.1005-20N 8.0 1.00 0.50 2.00 7.05 5.90 19.0 41.00 • 0.01-0.04
PICCO R 010.1608-10N 8.0 1.60 0.80 3.00 7.05 5.90 9.0 32.00 • 0.01-0.05
PICCO R 010.1608-20N 8.0 1.60 0.80 3.00 7.05 5.90 19.0 41.00 • 0.01-0.05
PICCO R 010.2010-10N 8.0 2.00 1.00 4.00 7.05 5.90 9.0 32.00 • 0.02-0.05
PICCO R 010.2010-20N 8.0 2.00 1.00 4.00 7.05 5.90 19.0 41.00 • 0.02-0.05
PICCO R 010.2512-10N 8.0 2.50 1.25 5.00 7.05 5.90 9.0 32.00 • 0.02-0.05
PICCO R 010.3015-10N 8.0 3.00 1.50 6.00 7.05 5.90 9.0 32.00 • 0.02-0.05
PICCO R 010.3015-20N 8.0 3.00 1.50 6.00 7.05 5.90 19.0 41.00 • 0.02-0.05
• Only right-hand inserts are available as standard, left-hand inserts on request • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
• For detailed cutting data, see page 604
(1) Minimum axial grooving diameter


OAL
PICCO-010
(Round Face Groove) DCONMS
Inserts for Round Profile CDX
Face Grooving a DAXN
CW
OHN Right-hand shown
Recommended
Dimensions
Machining Data

f face-groove
IC1008


Designation DAXN(1) CW RE CDX DCONMS a OHN(2) OAL (mm/rev)
PICCO R 010.1005-10 8.0 1.00 0.50 2.00 7.00 5.90 11.0 26.00 • 0.01-0.04
PICCO R 010.1005-20 8.0 1.00 0.50 2.00 7.00 5.90 20.0 35.00 • 0.01-0.04
PICCO R 010.1608-10 8.0 1.60 0.80 3.00 7.00 5.90 11.0 26.00 • 0.01-0.05
PICCO R 010.1608-20 8.0 1.60 0.80 3.00 7.00 5.90 20.0 35.00 • 0.01-0.05
PICCO R 010.2010-10 8.0 2.00 1.00 4.00 7.00 5.90 11.0 26.00 • 0.02-0.05
PICCO R 010.2010-20 8.0 2.00 1.00 4.00 7.00 5.90 20.0 35.00 • 0.02-0.05
PICCO R 010.2512-10 8.0 2.50 1.25 5.00 7.00 5.90 11.0 26.00 • 0.02-0.05
PICCO R 010.2512-20 8.0 2.50 1.25 5.00 7.00 5.90 20.0 35.00 • 0.02-0.05
PICCO R 010.3015-10 8.0 3.00 1.50 6.00 7.00 5.90 11.0 26.00 • 0.02-0.05
PICCO R 010.3015-20 8.0 3.00 1.50 6.00 7.00 5.90 20.0 35.00 • 0.02-0.05
• Only right-hand inserts are available as standard, left-hand inserts on request • For detailed cutting data, see page 604
(1) Minimum axial grooving diameter
(2) Minimum overhang


594 ISCAR
