Каталог Iscar отрезка 2022 - страница 135

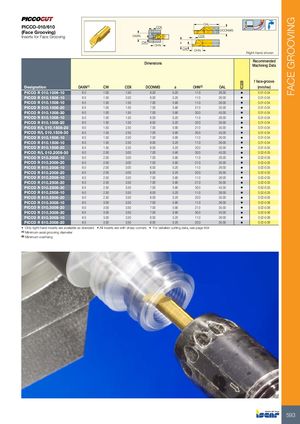

IC228 FACE GROOVING PICCO-010/610 OALCDX (Face Grooving) DCONMS Inserts for Face Grooving DAXN CDX CW a OHN CW OHN Right-hand shown Dimensions RecommendedMachining Data f face-groove Designation DAXN(1) CW CDX DCONMS a OHN(2) OAL (mm/rev) PICCO R 010.1006-10 6.0 1.00 1.50 6.00 5.20 11.0 26.00 • 0.01-0.04 PICCO R 010.1506-10 6.0 1.50 2.00 6.00 5.20 11.0 26.00 • 0.01-0.04 PICCO R 010.1008-10 8.0 1.00 1.50 7.00 5.90 11.0 26.00 • 0.01-0.04 PICCO R 010.1008-20 8.0 1.00 1.50 7.00 5.90 21.0 35.00 • 0.01-0.04 PICCO R 010.1008-30 8.0 1.00 1.50 7.00 5.90 30.0 45.00 • 0.01-0.04 PICCO R 610.1008-10 8.0 1.00 1.50 6.00 5.20 11.0 26.00 • 0.01-0.04 PICCO R 610.1008-20 8.0 1.00 1.50 6.00 5.20 20.0 35.00 • 0.01-0.04 PICCO R/L 010.1508-20 8.0 1.50 2.50 7.00 5.90 21.0 35.00 • 0.01-0.04 PICCO R/L 010.1508-30 8.0 1.50 2.50 7.00 5.90 30.0 45.00 • 0.01-0.04 PICCO R 010.1508-10 8.0 1.50 2.50 7.00 5.90 11.0 26.00 • 0.01-0.04 PICCO R 610.1508-10 8.0 1.50 2.50 6.00 5.20 11.0 26.00 • 0.01-0.04 PICCO R 610.1508-20 8.0 1.50 2.50 6.00 5.20 20.0 35.00 • 0.01-0.04 PICCO R/L 010.2008-30 8.0 2.00 3.00 7.00 5.90 30.0 45.00 • 0.02-0.05 PICCO R 010.2008-10 8.0 2.00 3.00 7.00 5.90 11.0 26.00 • 0.02-0.05 PICCO R 010.2008-20 8.0 2.00 3.00 7.00 5.90 21.0 35.00 • 0.02-0.05 PICCO R 610.2008-10 8.0 2.00 3.00 6.00 5.20 11.0 26.00 • 0.02-0.05 PICCO R 610.2008-20 8.0 2.00 3.00 6.00 5.20 20.0 35.00 • 0.02-0.05 PICCO R 010.2508-10 8.0 2.50 3.50 7.00 5.90 11.0 26.00 • 0.02-0.05 PICCO R 010.2508-20 8.0 2.50 3.50 7.00 5.90 21.0 35.00 • 0.02-0.05 PICCO R 010.2508-30 8.0 2.50 3.50 7.00 5.90 30.0 45.00 • 0.02-0.05 PICCO R 610.2508-10 8.0 2.50 3.50 6.00 5.20 11.0 26.00 • 0.02-0.05 PICCO R 610.2508-20 8.0 2.50 3.50 6.00 5.20 20.0 35.00 • 0.02-0.05 PICCO R 010.3008-10 8.0 3.00 3.50 7.00 5.90 11.0 26.00 • 0.02-0.06 PICCO R 010.3008-20 8.0 3.00 3.50 7.00 5.90 21.0 35.00 • 0.02-0.06 PICCO R 010.3008-30 8.0 3.00 3.50 7.00 5.90 30.0 45.00 • 0.02-0.06 PICCO R 610.3008-10 8.0 3.00 3.50 6.00 5.20 11.0 26.00 • 0.02-0.06 PICCO R 610.3008-20 8.0 3.00 3.50 6.00 5.20 20.0 35.00 • 0.02-0.06 • Only right-hand inserts are available as standard • All inserts are with sharp corners • For detailed cutting data, see page 604 (1) Minimum axial grooving diameter (2) Minimum overhang 593
