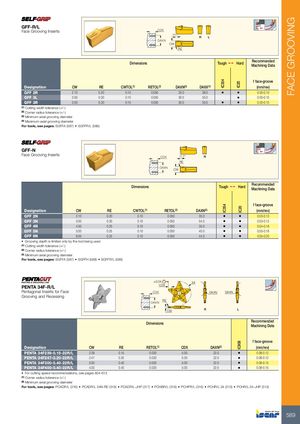

Каталог Iscar отрезка 2022 - страница 131

IC354IC354 IC20IC20IC908 FACE GROOVING GFF-R/L Face Grooving Inserts CDX 7° R L DAXN CW RE Dimensions Tough 1  Hard RecommendedMachining Data f face-groove Designation CW RE CWTOL(1) RETOL(2) DAXN(3) DAXX(4) (mm/rev) GFF 2R 2.10 0.20 0.10 0.050 25.0 36.0 • • 0.03-0.13 GFF 3L 3.00 0.30 0.10 0.050 30.0 55.0 • 0.03-0.15 GFF 3R 3.00 0.30 0.10 0.050 30.0 55.0 • • 0.03-0.15 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Maximum axial grooving diameter For tools, see pages: SGFFA (587) • SGFFR/L (586) GFF-N Face Grooving Inserts CDX 7° N RE DAXN CW Dimensions Tough 1  Hard RecommendedMachining Data f face-groove Designation CW RE CWTOL(1) RETOL(2) DAXN(3) (mm/rev) GFF 2N 2.10 0.20 0.10 0.050 35.0 • • 0.03-0.13 GFF 3N 3.00 0.30 0.10 0.050 54.0 • • 0.03-0.15 GFF 4N 4.00 0.25 0.10 0.050 35.0 • • 0.04-0.18 GFF 5N 5.00 0.25 0.10 0.050 40.0 • • 0.05-0.18 GFF 6N 6.00 0.25 0.10 0.050 44.0 • • 0.05-0.20 • Grooving depth is limited only by the tool being used (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter For tools, see pages: SGFFA (587) • SGFFH (588) • SGFFR/L (586) ±0.04 34 PENTA 34F-R/L CDX Pentagonal Inserts for Face CDX DAXN DAXN Grooving and Recessing DAXN RE CW R L Dimensions RecommendedMachining Data f face-groove Designation CW RE RETOL(1) CDX DAXN(2) (mm/rev) PENTA 34F239-0.15-22R/L 2.39 0.15 0.020 5.00 22.0 • 0.08-0.12 PENTA 34F247-0.20-22R/L 2.47 0.20 0.020 5.00 22.0 • 0.08-0.12 PENTA 34F300-0.40-22R/L 3.00 0.40 0.020 5.00 22.0 • 0.08-0.15 PENTA 34F400-0.40-22R/L 4.00 0.40 0.020 5.00 22.0 • 0.08-0.15 • For cutting speed recommendations, see pages 604-613 (1) Corner radius tolerance (+/-) (2) Minimum axial grooving diameter For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315) 589
