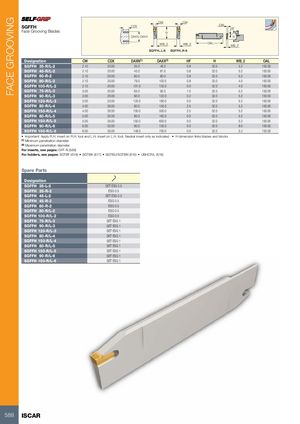

Каталог Iscar отрезка 2022 - страница 130
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| SGFFH Face Grooving Blades | DAXN-DAXX CDX | WB2 SGFFH..L-6 CW H | WB2 SGFFH..R-6 CW | OAL | CW HF H WB2 | |||
| Designation | CW | CDX | DAXN(1) | DAXX(2) | HF | H | WB2 | OAL |
| SGFFH 35-R/L-2 | 2.10 | 20.00 | 35.0 | 46.0 | 0.8 | 32.0 | 5.2 | 150.00 |
| SGFFH 45-R/L-2 | 2.10 | 20.00 | 45.0 | 61.0 | 0.8 | 32.0 | 5.2 | 150.00 |
| SGFFH 60-R-2 | 2.10 | 20.00 | 60.0 | 80.0 | 0.8 | 32.0 | 5.2 | 150.00 |
| SGFFH 80-R/L-2 | 2.10 | 20.00 | 79.0 | 102.0 | 0.8 | 32.0 | 4.0 | 150.00 |
| SGFFH 100-R/L-2 | 2.10 | 20.00 | 101.0 | 132.0 | 0.0 | 32.0 | 4.0 | 150.00 |
| SGFFH 75-R/L-3 | 3.00 | 20.00 | 65.0 | 92.0 | 1.0 | 32.0 | 5.2 | 150.00 |
| SGFFH 90-R/L-3 | 3.00 | 20.00 | 90.0 | 122.0 | 0.2 | 32.0 | 5.2 | 150.00 |
| SGFFH 120-R/L-3 | 3.00 | 25.00 | 120.0 | 160.0 | 0.0 | 32.0 | 5.2 | 150.00 |
| SGFFH 80-R/L-4 | 4.00 | 30.00 | 80.0 | 155.0 | 2.5 | 32.0 | 5.2 | 150.00 |
| SGFFH 150-R/L-4 | 4.00 | 30.00 | 150.0 | 500.0 | 2.5 | 32.0 | 5.2 | 150.00 |
| SGFFH 80-R/L-5 | 5.00 | 32.00 | 80.0 | 162.0 | 0.0 | 32.0 | 5.2 | 150.00 |
| SGFFH 150-R/L-5 | 5.00 | 35.00 | 150.0 | 600.0 | 0.0 | 32.0 | 5.2 | 150.00 |
| SGFFH 90-R/L-6 | 6.00 | 32.00 | 90.0 | 150.0 | 0.0 | 32.0 | 8.0 | 150.00 |
| SGFFH 150-R/L-6 | 6.00 | 35.00 | 148.0 | 700.0 | 0.0 | 32.0 | 5.2 | 150.00 |
- Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated
- H dimension links blades and blocks
(1) Minimum penetration diameter (2) Maximum penetration diameter
For inserts, see pages: GFF-N (589)
For holders, see pages: SGTBF (618) SGTBK (617) SGTBU/SGTBN (616) UBHCR/L (618)
Spare Parts
| Designation | |
| SGFFH 35-L-2 | SET ESG 0.5 |
| SGFFH 35-R-2 | ESG 0.5 |
| SGFFH 45-L-2 | SET ESG 0.5 |
| SGFFH 45-R-2 | ESG 0.5 |
| SGFFH 60-R-2 | ESG 0.5 |
| SGFFH 80-R/L-2 | ESG 0.5 |
| SGFFH 100-R/L-2 | ESG 0.5 |
| SGFFH 75-R/L-3 | SET ESG 1 |
| SGFFH 90-R/L-3 | SET ESG 1 |
| SGFFH 120-R/L-3 | SET ESG 1 |
| SGFFH 80-R/L-4 | SET ESG 1 |
| SGFFH 150-R/L-4 | SET ESG 1 |
| SGFFH 80-R/L-5 | SET ESG 1 |
| SGFFH 150-R/L-5 | SET ESG 1 |
| SGFFH 90-R/L-6 | SET ESG 1 |
| SGFFH 150-R/L-6 | SET ESG 1 |
