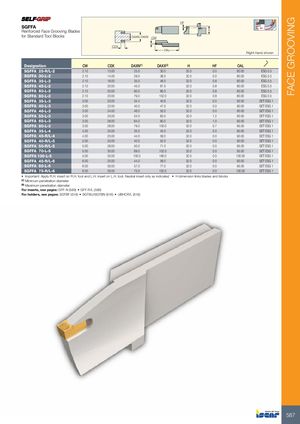

GFFA				HF
einforced Face Grooving Bla r Standard Tool Blocks	des	CDX DAXN-DAXX	CW OAL		H	R	ight-hand shown
Designation	CW	CDX DAXN(1)	DAXX(2)	H	HF	OAL
SGFFA 25-R/L-2	2.10	13.00 25.0	30.0	32.0	0.0	80.00	ESG 0.5
SGFFA 30-L-2	2.10	14.00 29.0	36.0	32.0	0.0	80.00	ESG 0.5
SGFFA 35-L-2	2.10	16.00 35.0	46.0	32.0	0.8	80.00	ESG 0.5
SGFFA 45-L-2	2.10	20.00 45.0	61.0	32.0	0.8	80.00	ESG 0.5
SGFFA 60-L-2	2.10	20.00 60.0	80.0	32.0	0.8	80.00	ESG 0.5
SGFFA 80-L-2	2.10	20.00 79.0	102.0	32.0	0.8	80.00	ESG 0.5
SGFFA 35-L-3	3.00	20.00 34.4	40.6	32.0	0.0	90.00	SET ESG 1
SGFFA 40-L-3	3.00	22.00 40.0	47.0	32.0	0.0	90.00	SET ESG 1
SGFFA 46-L-3	3.00	24.00 46.0	55.0	32.0	0.0	90.00	SET ESG 1
SGFFA 55-L-3	3.00	25.00 54.0	65.0	32.0	1.2	90.00	SET ESG 1
SGFFA 65-L-3	3.00	26.00 64.0	80.0	32.0	1.0	90.00	SET ESG 1
SGFFA 80-L-3	3.00	28.00 79.0	100.0	32.0	0.7	95.00	SET ESG 1
SGFFA 35-L-4	4.00	25.00 35.0	45.0	32.0	0.0	90.00	SET ESG 1
SGFFA 45-R/L-4	4.00	25.00 44.0	58.0	32.0	0.0	90.00	SET ESG 1
SGFFA 40-R/L-5	5.00	25.00 40.0	52.0	32.0	0.0	90.00	SET ESG 1
SGFFA 50-R/L-5	5.00	28.00 50.0	71.0	32.0	0.0	95.00	SET ESG 1
SGFFA 70-L-5	5.00	30.00 69.0	102.0	32.0	0.0	95.00	SET ESG 1
SGFFA 100-L-5	5.00	35.00 100.0	180.0	32.0	0.0	100.00	SET ESG 1
SGFFA 45-R/L-6	6.00	25.00 44.0	58.0	32.0	0.0	90.00	SET ESG 1
SGFFA 60-L-6	6.00	30.00 57.0	77.0	32.0	0.0	95.00	SET ESG 1
SGFFA 75-R/L-6	6.00	35.00 75.0	102.0	32.0	0.0	100.00	SET ESG 1

Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated
H dimension links blades and blocks

(1) Minimum penetration diameter (2) Maximum penetration diameter

For inserts, see pages: GFF-N (589) GFF-R/L (589)

For holders, see pages: SGTBF (618) SGTBU/SGTBN (616) UBHCR/L (618)
