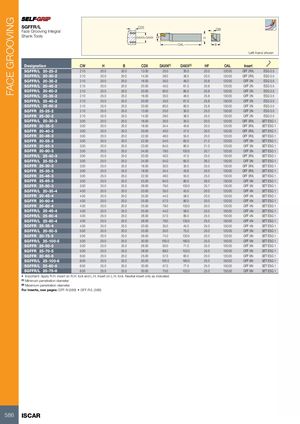

| SGFFR/L Face Grooving Integral Shank Tools | DAXN-DAXX CDX | HF | CW H | ||||||
| OAL | B | Left-h | and shown | ||||||
| Designation | CW | H | B | CDX | DAXN(1) | DAXX(2) | HF OAL | Insert | |
| SGFFR/L 20-25-2 | 2.10 | 20.0 | 20.0 | 13.00 | 25.0 | 30.0 | 20.0 120.00 | GFF 2R/L | ESG 0.5 |
| SGFFR/L 20-30-2 | 2.10 | 20.0 | 20.0 | 14.00 | 29.0 | 36.0 | 20.0 120.00 | GFF 2R/L | ESG 0.5 |
| SGFFR/L 20-35-2 | 2.10 | 20.0 | 20.0 | 16.00 | 35.0 | 46.0 | 20.8 120.00 | GFF 2N | ESG 0.5 |
| SGFFR/L 20-45-2 | 2.10 | 20.0 | 20.0 | 20.00 | 45.0 | 61.0 | 20.8 120.00 | GFF 2N | ESG 0.5 |
| SGFFR/L 20-60-2 | 2.10 | 20.0 | 20.0 | 20.00 | 60.0 | 80.0 | 20.8 120.00 | GFF 2N | ESG 0.5 |
| SGFFR/L 25-35-2 | 2.10 | 25.0 | 25.0 | 16.00 | 35.0 | 46.0 | 25.8 130.00 | GFF 2N | ESG 0.5 |
| SGFFR/L 25-45-2 | 2.10 | 25.0 | 25.0 | 20.00 | 45.0 | 61.0 | 25.8 130.00 | GFF 2N | ESG 0.5 |
| SGFFR/L 25-60-2 | 2.10 | 25.0 | 25.0 | 20.00 | 60.0 | 80.0 | 25.8 130.00 | GFF 2N | ESG 0.5 |
| SGFFR 25-25-2 | 2.10 | 25.0 | 25.0 | 13.00 | 25.0 | 30.0 | 25.0 130.00 | GFF 2N | ESG 0.5 |
| SGFFR 25-30-2 | 2.10 | 25.0 | 25.0 | 14.00 | 29.0 | 36.0 | 25.0 130.00 | GFF 2N | ESG 0.5 |
| SGFFR/L 20-30-3 | 3.00 | 20.0 | 20.0 | 16.00 | 30.0 | 35.0 | 20.0 120.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 20-35-3 | 3.00 | 20.0 | 20.0 | 18.00 | 34.4 | 40.6 | 20.0 120.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 20-40-3 | 3.00 | 20.0 | 20.0 | 20.00 | 40.0 | 47.0 | 20.0 120.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 20-46-3 | 3.00 | 20.0 | 20.0 | 22.00 | 46.0 | 55.0 | 20.0 120.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 20-55-3 | 3.00 | 20.0 | 20.0 | 22.00 | 54.0 | 65.0 | 21.2 120.00 | GFF 3N | SET ESG 1 |
| SGFFR 20-65-3 | 3.00 | 20.0 | 20.0 | 23.00 | 64.0 | 80.0 | 21.0 120.00 | GFF 3N | SET ESG 1 |
| SGFFR 20-80-3 | 3.00 | 20.0 | 20.0 | 24.00 | 79.0 | 100.0 | 20.7 120.00 | GFF 3N | SET ESG 1 |
| SGFFR/L 25-40-3 | 3.00 | 25.0 | 25.0 | 20.00 | 40.0 | 47.0 | 25.0 130.00 | GFF 3R/L | SET ESG 1 |
| SGFFR/L 25-55-3 | 3.00 | 25.0 | 25.0 | 24.00 | 54.0 | 65.0 | 26.2 130.00 | GFF 3N | SET ESG 1 |
| SGFFR 25-30-3 | 3.00 | 25.0 | 25.0 | 16.00 | 30.0 | 35.0 | 25.0 130.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 25-35-3 | 3.00 | 25.0 | 25.0 | 18.00 | 34.4 | 40.6 | 25.0 130.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 25-46-3 | 3.00 | 25.0 | 25.0 | 22.00 | 46.0 | 55.0 | 25.0 130.00 | GFF 3R/L | SET ESG 1 |
| SGFFR 25-65-3 | 3.00 | 25.0 | 25.0 | 25.00 | 64.0 | 80.0 | 26.0 130.00 | GFF 3N | SET ESG 1 |
| SGFFR 25-80-3 | 3.00 | 25.0 | 25.0 | 26.00 | 79.0 | 100.0 | 25.7 130.00 | GFF 3N | SET ESG 1 |
| SGFFR/L 20-35-4 | 4.00 | 20.0 | 20.0 | 20.00 | 35.0 | 45.0 | 20.0 120.00 | GFF 4N | SET ESG 1 |
| SGFFR 20-45-4 | 4.00 | 20.0 | 20.0 | 25.00 | 44.0 | 58.0 | 20.0 120.00 | GFF 4N | SET ESG 1 |
| SGFFR 20-60-4 | 4.00 | 20.0 | 20.0 | 25.00 | 57.0 | 80.0 | 20.0 120.00 | GFF 4N | SET ESG 1 |
| SGFFR 20-80-4 | 4.00 | 20.0 | 20.0 | 25.00 | 79.0 | 130.0 | 20.0 120.00 | GFF 4N | SET ESG 1 |
| SGFFR/L 25-45-4 | 4.00 | 25.0 | 25.0 | 25.00 | 44.0 | 58.0 | 25.0 150.00 | GFF 4N | SET ESG 1 |
| SGFFR/L 25-60-4 | 4.00 | 25.0 | 25.0 | 26.00 | 57.0 | 80.0 | 25.0 150.00 | GFF 4N | SET ESG 1 |
| SGFFR/L 25-80-4 | 4.00 | 25.0 | 25.0 | 26.00 | 79.0 | 130.0 | 25.0 150.00 | GFF 4N | SET ESG 1 |
| SGFFR 25-35-4 | 4.00 | 25.0 | 25.0 | 20.00 | 35.0 | 45.0 | 25.0 150.00 | GFF 4N | SET ESG 1 |
| SGFFR/L 20-50-5 | 5.00 | 20.0 | 20.0 | 25.00 | 50.0 | 75.0 | 20.0 120.00 | GFF 5N | SET ESG 1 |
| SGFFR 20-75-5 | 5.00 | 20.0 | 20.0 | 26.00 | 74.0 | 130.0 | 20.0 120.00 | GFF 5N | SET ESG 1 |
| SGFFR/L 25-100-5 | 5.00 | 25.0 | 25.0 | 30.00 | 100.0 | 180.0 | 25.0 150.00 | GFF 5N | SET ESG 1 |
| SGFFR 25-50-5 | 5.00 | 25.0 | 25.0 | 26.00 | 50.0 | 71.0 | 25.0 150.00 | GFF 5N | SET ESG 1 |
| SGFFR 25-70-5 | 5.00 | 25.0 | 25.0 | 28.00 | 69.0 | 102.0 | 25.0 150.00 | GFF 5N | SET ESG 1 |
| SGFFR 20-60-6 | 6.00 | 20.0 | 20.0 | 25.00 | 57.0 | 60.0 | 20.0 120.00 | GFF 6N | SET ESG 1 |
| SGFFR/L 25-100-6 | 6.00 | 25.0 | 25.0 | 30.00 | 100.0 | 180.0 | 25.0 150.00 | GFF 6N | SET ESG 1 |
| SGFFR/L 25-60-6 | 6.00 | 25.0 | 25.0 | 30.00 | 57.0 | 77.0 | 25.0 150.00 | GFF 6N | SET ESG 1 |
| SGFFR/L 25-75-6 | 6.00 | 25.0 | 25.0 | 30.00 | 75.0 | 102.0 | 25.0 150.00 | GFF 6N | SET ESG 1 |
- Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated
(1) Minimum penetration diameter (2) Maximum penetration diameter
For inserts, see pages: GFF-N (589) GFF-R/L (589)
