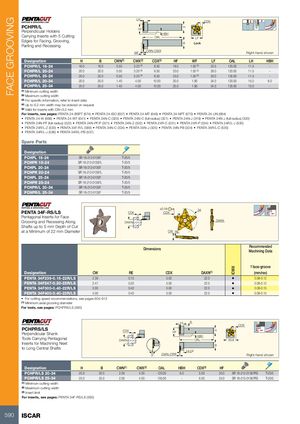

| LH | C | DX | |||||||||
| PCHPR/L Perpendicular Holders Carrying Inserts with 5 Cutting | HF | OAL HB | H H | LF | |||||||
| Edges for Facing, Grooving, Parting and Recessing | C WF | WN-CWX | B | Lock | Right-han | d shown | |||||
| Designation | H | B | CWN(1) | CWX(2) | CDX(3) | HF | WF | LF | OAL | LH | HBH |
| PCHPR/L 16-24 | 16.0 | 16.0 | 0.50 | 3.20(4) | 6.50 | 16.0 | 1.50(5) | 23.5 | 120.00 | 11.5 | - |
| PCHPR/L 20-24 | 20.0 | 20.0 | 0.50 | 3.20(4) | 6.50 | 20.0 | 1.50(5) | 28.0 | 120.00 | 11.5 | - |
| PCHPR/L 25-24 | 25.0 | 25.0 | 0.50 | 3.20(4) | 6.50 | 25.0 | 1.50(5) | 33.0 | 135.00 | 11.5 | - |
| PCHPR/L 20-34 | 20.0 | 20.0 | 1.40 | 4.00 | 10.00 | 20.0 | 1.90 | 34.0 | 120.00 | 15.0 | 6.0 |
| PCHPR/L 25-34 | 25.0 | 25.0 | 1.40 | 4.00 | 10.00 | 25.0 | 1.90 | 34.0 | 135.00 | 15.0 | - |
(1) Minimum cutting width (2) Maximum cutting width (3) For specific information, refer to insert data (4) Up to 6.2 mm width may be ordered on request (5) Valid for inserts with CW<3.2 mm
For inserts, see pages: PENTA 24-BSPT (674) PENTA 24-ISO (657) PENTA 24-MT (646) PENTA 24-NPT (670) PENTA 24-UN (664)
- PENTA 24-W (668)
- PENTA 24-WT (641)
- PENTA 24N-C (320)
- PENTA 24N-C (full radius) (321)
- PENTA 24N-J (319)
- PENTA 24N-J (full radius) (320)
- PENTA 24N-PF (full radius) (322)
- PENTA 24N-PF/P (321)
- PENTA 24N-Z (322)
- PENTA 24R-C (531)
- PENTA 24R-P (534)
- PENTA 24R/L-J (530)
- PENTA 24R/L-Z (533)
- PENTA 34F-R/L (589)
- PENTA 34N-C (324)
- PENTA 34N-J (325)
- PENTA 34N-PB (324)
- PENTA 34R/L-C (535)
- PENTA 34R/L-J (536)
- PENTA 34R/L-PB (537)
| Spare Parts | ||
| Designation | ||
| PCHPL 16-24 | SR 16-212-01397 | T-20/5 |
| PCHPR 16-24 | SR 16-212-01397L | T-20/5 |
| PCHPL 20-24 | SR 16-212-01397 | T-20/5 |
| PCHPR 20-24 | SR 16-212-01397L | T-20/5 |
| PCHPL 25-24 | SR 16-212-01397 | T-20/5 |
| PCHPR 25-24 | SR 16-212-01397L | T-20/5 |
| PCHPR/L 20-34 | SR 16-212-01397 | T-20/5 |
| PCHPR/L 25-34 | SR 16-212-01397 | T-20/5 |
| PENTA 34F-RS/LS Pentagonal Inserts for Face Grooving and Recessing Along Shafts up to 5 mm Depth of Cut at a Minimum of 22 mm Diameter | 34 CDX ±0.04 CW RE DAXN CDX DAXN | ||
| Dimensions | Recommended Machining Data | ||
| Designation | CW | RE CDX DAXN(1) | IC908 f face-groove (mm/rev) |
| PENTA 34F239-0.15-22R/LS | 2.39 | 0.15 5.00 22.0 | • 0.08-0.12 |
| PENTA 34F247-0.20-22R/LS | 2.47 | 0.20 5.00 22.0 | • 0.08-0.12 |
| PENTA 34F300-0.40-22R/LS | 3.00 | 0.40 5.00 22.0 | • 0.08-0.15 |
| PENTA 34F400-0.40-22R/LS | 4.00 | 0.40 5.00 22.0 | • 0.08-0.15 |
- For cutting speed recommendations, see pages 604-613
(1) Minimum axial grooving diameter
For tools, see pages: PCHPRS/LS (590)
| PCHPRS/LS Perpendicular Shank Tools Carrying Pentagonal Inserts for Machining Next to Long Central Shafts | CDX DAXN | CWN- 3° | 15 HF OAL CWX HBH 6 14.04 | B CDX 33.8 H Rig | ht-hand shown | ||
| Designation | H | B | CWN(1) CWX(2) | OAL | HBH CDX(3) | HF | |
| PCHPR/LS 20-34 | 20.0 | 20.0 | 2.39 4.00 | 120.00 | 6.0 5.00 | 20.0 SR 16-212-013 | 97RS T-20/5 |
| PCHPR/LS 25-34 | 25.0 | 25.0 | 2.39 4.00 | 135.00 | - 5.00 | 25.0 SR 16-212-013 | 97RS T-20/5 |
(1) Minimum cutting width (2) Maximum cutting width (3) Insert limit
For inserts, see pages: PENTA 34F-RS/LS (590)
