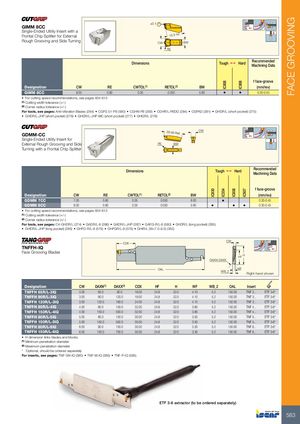

GIMM 8CC
Single-Ended Utility Insert with a
Frontal Chip Splitter for External
Rough Grooving and Side Turning
Dimensions
15.3 Ref. CW BW RE
Recommended
Tough 1 Hard Machining Data
f face-groove
| Designation | CW | RE | CWTOL(1) | RETOL(2) | BW | (mm/rev) | |||
| GIMM 8CC | 8.00 | 0.80 | 0.05 | 0.050 | 5.80 | • | • | 0.30-0.45 |
- For cutting speed recommendations, see pages 604-613
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-)
For tools, see pages: Anti-Vibration Blades (284) CGFG 51-P8 (580) CGHN-P8 (283) CGHR/L-P8DG (284) CGPAD (281) GHDR/L (short pocket) (275)
- GHDR/L-JHP (short pocket) (276)
- GHDR/L-JHP-MC (short pocket) (277)
- GHGR/L (278)
29.95 Ref. CW
GDMM-CC
Single-Ended Utility Insert for
External Rough Grooving and Side RE BW
Turning with a Frontal Chip Splitter
| Dimensions | To | ugh1 | Hard | Recommended Machining Data | |||||
| Designation | CW | RE | CWTOL(1) | RETOL(2) | BW | IC830 | IC354 | IC808 IC907 | f face-groove (mm/rev) |
| GDMM 7CC | 7.00 | 0.80 | 0.05 | 0.050 | 6.00 | • | 0.30-0.45 | ||
| GDMM 8CC | 8.00 | 0.80 | 0.05 | 0.050 | 5.60 | • | • • | 0.30-0.45 |
- For cutting speed recommendations, see pages 604-613
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) GADR/L-8 (286) GADR/L-JHP (287) GAFG-R/L-8 (580) GHDR/L (long pocket) (285)
- GHDR/L-JHP (long pocket) (285)
- GHFG-R/L-8 (579)
- GHFGR/L-8 (579)
- GHIR/L (W=7.0-8.3) (355)
| TNFFH-IQ | CDX | CW | ||||||||||
| Face Grooving Blades | DAXN-D | AXX | H HF | |||||||||
| OAL | WB2 | WF | Right-h | and shown | ||||||||
| Designation | CW | DAXN(1) | DAXX(2) | CDX | HF | H | WF | WB2 | OAL | Insert | ||
| TNFFH 65R/L-3IQ | 3.00 | 65.0 | 90.0 | 18.00 | 24.8 | 32.0 | 4.10 | 5.2 | 150.00 | TNF 3... | ETF 3-6 | |
| TNFFH 90R/L-3IQ | 3.00 | 90.0 | 120.0 | 18.00 | 24.8 | 32.0 | 4.10 | 5.2 | 150.00 | TNF 3... | ETF 3-6 | |
| TNFFH 120R/L-3IQ | 3.00 | 120.0 | 160.0 | 24.00 | 24.8 | 32.0 | 4.10 | 5.2 | 150.00 | TNF 3... | ETF 3-6 | |
| TNFFH 80R/L-4IQ | 4.00 | 80.0 | 150.0 | 32.00 | 24.8 | 32.0 | 3.80 | 5.2 | 150.00 | TNF 4... | ETF 3-6 | |
| TNFFH 150R/L-4IQ | 4.00 | 150.0 | 500.0 | 32.00 | 24.8 | 32.0 | 3.80 | 5.2 | 150.00 | TNF 4... | ETF 3-6 | |
| TNFFH 80R/L-5IQ | 5.00 | 80.0 | 150.0 | 30.00 | 24.8 | 32.0 | 3.50 | 5.2 | 150.00 | TNF 5... | ETF 3-6 | |
| TNFFH 150R/L-5IQ | 5.00 | 150.0 | 500.0 | 35.00 | 24.8 | 32.0 | 3.50 | 5.2 | 150.00 | TNF 5... | ETF 3-6 | |
| TNFFH 80R/L-6IQ | 6.00 | 80.0 | 150.0 | 30.00 | 24.8 | 32.0 | 3.30 | 5.2 | 150.00 | TNF 6... | ETF 3-6 | |
| TNFFH 150R/L-6IQ | 6.00 | 150.0 | 700.0 | 35.00 | 24.8 | 32.0 | 3.30 | 5.2 | 150.00 | TNF 6... | ETF 3-6 |
- H dimension links blades and blocks
(1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately
For inserts, see pages: TNF GN-IQ (585) TNF-M-IQ (585) TNF-P-IQ (585)
ETF 3-6 extractor (to be ordered separately)
