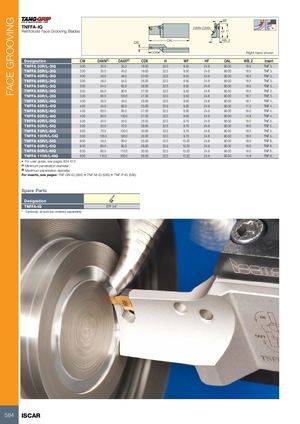

Каталог Iscar отрезка 2022 - страница 126
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| WF | ||||||||||
| TNFFA-IQ | DAXN-DAXX | |||||||||
| Reinforced Face Grooving | Blades | H HF | ||||||||
| CW | OAL CDX | WB2 | Rig | ht-hand shown | ||||||
| Designation | CW | DAXN(1) | DAXX(2) | CDX | H | WF | HF | OAL | WB | 2 Insert |
| TNFFA 30R/L-3IQ | 3.00 | 30.0 | 35.0 | 19.00 | 32.0 | 9.50 | 24.8 | 90.00 | 18.5 | TNF 3... |
| TNFFA 35R/L-3IQ | 3.00 | 35.0 | 40.0 | 19.00 | 32.0 | 9.50 | 24.8 | 90.00 | 18.5 | TNF 3... |
| TNFFA 40R/L-3IQ | 3.00 | 40.0 | 46.0 | 23.00 | 32.0 | 9.50 | 24.8 | 90.00 | 18.5 | TNF 3... |
| TNFFA 46R/L-3IQ | 3.00 | 46.0 | 54.0 | 25.00 | 32.0 | 9.50 | 24.8 | 90.00 | 18.5 | TNF 3... |
| TNFFA 54R/L-3IQ | 3.00 | 54.0 | 65.0 | 26.00 | 32.0 | 9.50 | 24.8 | 90.00 | 18.5 | TNF 3... |
| TNFFA 65R/L-3IQ | 3.00 | 65.0 | 80.0 | 27.00 | 32.0 | 9.50 | 24.8 | 90.00 | 18.5 | TNF 3... |
| TNFFA 80R/L-3IQ | 3.00 | 80.0 | 100.0 | 27.00 | 32.0 | 9.50 | 24.8 | 90.00 | 16.7 | TNF 3... |
| TNFFA 35R/L-4IQ | 4.00 | 35.0 | 45.0 | 25.00 | 32.0 | 9.00 | 24.8 | 90.00 | 18.1 | TNF 4... |
| TNFFA 45R/L-4IQ | 4.00 | 45.0 | 60.0 | 25.00 | 32.0 | 9.00 | 24.8 | 90.00 | 17.3 | TNF 4... |
| TNFFA 60R/L-4IQ | 4.00 | 60.0 | 80.0 | 27.00 | 32.0 | 9.00 | 24.8 | 90.00 | 18.0 | TNF 4... |
| TNFFA 80R/L-4IQ | 4.00 | 80.0 | 130.0 | 27.00 | 32.0 | 9.00 | 24.8 | 90.00 | 14.8 | TNF 4... |
| TNFFA 40R/L-5IQ | 5.00 | 40.0 | 50.0 | 25.00 | 32.0 | 9.70 | 24.8 | 90.00 | 18.0 | TNF 5... |
| TNFFA 50R/L-5IQ | 5.00 | 50.0 | 70.0 | 28.00 | 32.0 | 9.70 | 24.8 | 90.00 | 18.0 | TNF 5... |
| TNFFA 70R/L-5IQ | 5.00 | 70.0 | 100.0 | 30.00 | 32.0 | 9.70 | 24.8 | 90.00 | 18.0 | TNF 5... |
| TNFFA 100R/L-5IQ | 5.00 | 100.0 | 180.0 | 35.00 | 32.0 | 9.70 | 24.8 | 90.00 | 18.0 | TNF 5... |
| TNFFA 45R/L-6IQ | 6.00 | 45.0 | 60.0 | 25.00 | 32.0 | 10.20 | 24.8 | 90.00 | 18.0 | TNF 6... |
| TNFFA 60R/L-6IQ | 6.00 | 60.0 | 80.0 | 28.00 | 32.0 | 10.20 | 24.8 | 90.00 | 18.0 | TNF 6... |
| TNFFA 80R/L-6IQ | 6.00 | 80.0 | 110.0 | 30.00 | 32.0 | 10.20 | 24.8 | 90.00 | 18.0 | TNF 6... |
| TNFFA 110R/L-6IQ | 6.00 | 110.0 | 300.0 | 35.00 | 32.0 | 10.20 | 24.8 | 90.00 | 14.8 | TNF 6... |
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter
For inserts, see pages: TNF GN-IQ (585) TNF-M-IQ (585) TNF-P-IQ (585)
Spare Parts
Designation
TNFFA-IQ ETF 3-6* * Optional, should be ordered separately
