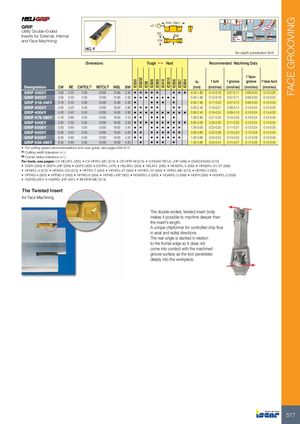

FACE GROOVING
INSL (Ref.)
±0.1
GRIP
Utility Double-Ended RE
Inserts for External, Internal BW
and Face Machining CW

No depth penetration limit

Dimensions Tough 1 Hard Recommended Machining Data

f face-


IC8250


IC5010
ap f turn f groove groove f face-turn


IC830

IC808
IC908
IC418
IC806
IC807
IC804
IC08
Designation CW RE CWTOL(1) RETOL(2) INSL BW (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
GRIP 3002Y 3.00 0.20 0.05 0.050 15.80 2.30 • • • • • • • • 0.25-1.80 0.14-0.18 0.07-0.11 0.08-0.20 0.10-0.20
GRIP 3003Y 3.00 0.30 0.05 0.050 15.80 2.30 • • • • • • • • 0.40-1.80 0.15-0.19 0.07-0.11 0.08-0.20 0.10-0.20
GRIP 318-040Y 3.18 0.40 0.05 0.050 15.80 2.30 • • • • • 0.50-1.90 0.17-0.22 0.07-0.12 0.08-0.20 0.10-0.20
GRIP 4002Y 4.00 0.20 0.05 0.050 19.00 2.80 • • • • • • • 0.25-2.40 0.16-0.21 0.09-0.14 0.10-0.24 0.15-0.30
GRIP 4004Y 4.00 0.40 0.05 0.050 19.00 2.80 • • • • • • • • • • 0.50-2.40 0.18-0.24 0.09-0.15 0.10-0.24 0.15-0.30
GRIP 476-080Y 4.76 0.80 0.05 0.050 19.00 3.10 • • • • • • 1.00-2.80 0.21-0.33 0.10-0.20 0.10-0.24 0.15-0.30
GRIP 5005Y 5.00 0.50 0.05 0.050 19.00 3.30 • • • • • • • • • • 0.60-3.00 0.20-0.30 0.11-0.20 0.12-0.24 0.15-0.35
GRIP 5008Y 5.00 0.80 0.05 0.050 19.00 3.40 • • • • • • • • 1.00-3.00 0.23-0.35 0.11-0.21 0.12-0.24 0.15-0.35
GRIP 6005Y 6.00 0.50 0.05 0.050 19.00 4.20 • • • • • • • • 0.60-3.60 0.22-0.36 0.13-0.23 0.12-0.28 0.15-0.40
GRIP 6008Y 6.00 0.80 0.05 0.050 19.00 4.20 • • • • • • • • 1.00-3.60 0.24-0.42 0.13-0.25 0.12-0.28 0.15-0.40
GRIP 635-080Y 6.35 0.80 0.05 0.050 19.00 4.20 • • • • • 1.00-3.80 0.25-0.44 0.14-0.27 0.12-0.28 0.15-0.40
• For cutting speed recommendations and user guide, see pages 604-613
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479)
• DGFH (268) • DGFH-JHP (269) • DGFS (469) • DGTR/L (476) • HELIIR/L (355) • HELIR/L (266) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566)
• HFAIR/L-4 (572) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFIR/L-MC (574) • HFPAD-3 (562)
• HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGAER/L-3 (565) • HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558)
• HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574)

The Twisted Insert
for Face Machining

The double-ended, twisted insert body
makes it possible to machine deeper than
the insert’s length.
A unique chipformer for controlled chip flow
in axial and radial directions.
The rear angle is slanted in relation
to the frontal edge so it does not
come into contact with the machined
groove surface as the tool penetrates
deeply into the workpiece.


577
