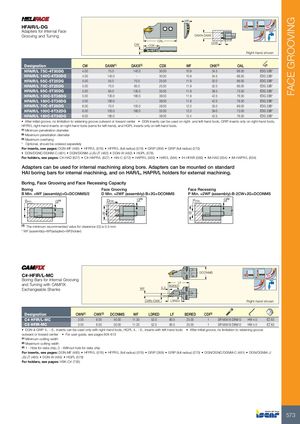

FACE GROOVING WF HFAIR/L-DG Adapters for Internal Face Grooving and Turning DAXN-DAXX OALCWCDX OHX Right-hand shown Designation CW DAXN(1) DAXX(2) CDX WF OHX(3) OAL HFAIR/L 75C-4T30DG 4.00 75.0 140.0 30.00 10.9 34.5 68.50 EDG 33B* HFAIR/L 140C-4T30DG 4.00 140.0 - 30.00 10.9 34.5 68.50 EDG 33B* HFAIR/L 55C-5T25DG 5.00 55.0 70.0 25.00 11.9 32.0 66.00 EDG 33B* HFAIR/L 70C-5T25DG 5.00 70.0 95.0 25.00 11.9 32.0 66.00 EDG 33B* HFAIR/L 95C-5T35DG 5.00 95.0 130.0 35.00 11.9 39.5 73.50 EDG 33B* HFAIR/L 130C-5T38DG 5.00 130.0 180.0 38.00 11.9 42.5 76.50 EDG 33B* HFAIR/L 180C-5T38DG 5.00 180.0 - 38.00 11.9 42.5 76.50 EDG 33B* HFAIR/L 70C-6T28DG 6.00 70.0 100.0 28.00 12.0 35.0 69.00 EDG 33B* HFAIR/L 100C-6T32DG 6.00 100.0 180.0 32.00 12.0 39.0 73.00 EDG 33B* HFAIR/L 180C-6T38DG 6.00 180.0 - 38.00 12.4 42.5 76.50 EDG 33B* • After initial groove, no limitation to widening groove outward or toward center • DGN inserts can be used on right- and left-hand tools, GRIP inserts only on right-hand tools, HFPR/L right-hand inserts on right-hand tools (same for left-hand), and HGPL inserts only on left-hand tools. (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang * Optional, should be ordered separately For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGN-W (482) • HGPL (578) For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAI-C (572) • HAPR/L (565) • HAR/L (564) • IH-HFAIR (569) • IM-HAD (634) • IM-HAPR/L (634) Adapters can be used for internal machining along bore. Adapters can be mounted on standard HAI boring bars for internal machining, and on HAR/L, HAPR/L holders for external machining. Boring, Face Grooving and Face Recessing Capacity Boring Face Grooving Face Recessing B Min. =WF (assembly)+G+DCONMS/2 D Min. =2WF (assembly)-B+2G+DCONMS P Min. =2WF (assembly)-B-2CW+2G+DCONMS Bmin. G(1) Dmin. G(1) Pmin. G(1) B B (1) The minimum recommended value for clearance (G) is 0.5 mm * WF (assembly)=WF(adapter)+WF(holder) DCONMS C#-HFIR/L-MC Boring Bars for Internal Grooving and Turning with CAMFIXExchangeable Shanks LFWF5.3BDRED CWN-CWX LDRED Right-hand shown Designation CWN(1) CWX(2) DCONMS WF LDRED LF BDRED CDI(3) C4 HFIR/L-MC 3.00 6.00 40.00 11.30 52.0 80.0 25.00 1 SR M5X16 DIN912 HW 4.0 EZ 83 C5 HFIR-MC 3.00 6.00 50.00 11.30 52.0 80.0 25.00 1 SR M5X16 DIN912 HW 4.0 EZ 83 • DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools • After initial groove, no limitation to widening groove outward or toward center • For user guide, see pages 604-613 (1) Minimum cutting width (2) Maximum cutting width (3) 1 - Hole for data chip, 0 - Without hole for data chip For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/ JS/JT (483) • DGN-W (482) • HGPL (578) For holders, see pages: HSK-C# (735) 573
