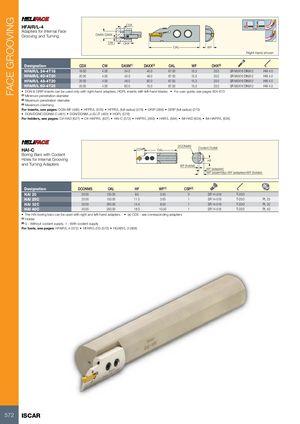

FACE GROOVING HFAIR/L-4 CDX Adapters for Internal Face Grooving and Turning DAXN-DAXX CW OHX OAL WF Right-hand shown Designation CDX CW DAXN(1) DAXX(2) OAL WF OHX(3) HFAIR/L 34-4T18 18.00 4.00 34.0 40.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0 HFAIR/L 40-4T20 20.00 4.00 40.0 48.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0 HFAIR/L 48-4T20 20.00 4.00 48.0 60.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0 HFAIR/L 60-4T25 25.00 4.00 60.0 75.0 67.00 15.3 33.0 SR M5X16 DIN912 HW 4.0 • DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 604-613 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • HGPL (578) For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAI-C (572) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634) HAI-C CDX(a) OAL DCONMS Coolant Outlet Boring Bars with Coolant Holes for Internal Grooving HF and Turning Adapters WF (holder) WF (adapter) WF (assembly)=WF (adapter)+WF (holder) Designation DCONMS OAL HF WF(1) CSP(2) HAI 20 20.00 130.00 9.0 0.50 0 SR 14-519 T-20/3 HAI 25C 25.00 150.00 11.5 3.00 1 SR 14-519 T-20/3 PL 25 HAI 32C 32.00 200.00 14.5 6.50 1 SR 14-519 T-20/3 PL 32 HAI 40C 40.00 250.00 18.0 10.50 1 SR 14-519 T-20/3 PL 40 • The HAI boring bars can be used with right and left-hand adapters • (a) CDX - see corresponding adapters (1) Holder (2) 0 - Without coolant supply, 1 - With coolant supply For tools, see pages: HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAIR/L-3 (568) 572 ISCAR
