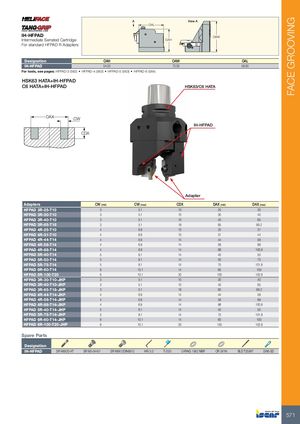

A View A
IH-HFPAD
OAW Intermediate Serrated Cartridge OAH
For standard HFPAD R Adapters
| Designation | OAH | OAW | OAL |
| IH-HFPAD | 54.00 | 73.00 | 58.90 |
For tools, see pages: HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) HSK63 HATA+IH-HFPAD C6 HATA+IH-HFPAD HSK63/C6 HATA
DAX CW
IH-HFPAD
CDX
Adapter
| Adapters | CW(min) | CW(max) | CDX | DAX(min) | DAX(max) | |
| HFPAD 3R-25-T10 | 3 | 5.1 | 10 | 25 | 30 | |
| HFPAD 3R-30-T10 | 3 | 5.1 | 10 | 30 | 40 | |
| HFPAD 3R-40-T10 | 3 | 5.1 | 10 | 40 | 65 | |
| HFPAD 3R-65-T18 | 3 | 5.1 | 18 | 65 | 99.2 | |
| HFPAD 4R-25-T10 | 4 | 6.9 | 10 | 25 | 31 | |
| HFPAD 4R-31-T10 | 4 | 6.9 | 10 | 31 | 44 | |
| HFPAD 4R-44-T14 | 4 | 6.9 | 14 | 44 | 58 | |
| HFPAD 4R-58-T14 | 4 | 6.9 | 14 | 58 | 88 | |
| HFPAD 4R-88-T14 | 4 | 6.9 | 14 | 88 | 100.8 | |
| HFPAD 5R-40-T14 | 5 | 8.1 | 14 | 40 | 50 | |
| HFPAD 5R-50-T14 | 5 | 8.1 | 14 | 50 | 75 | |
| HFPAD 5R-75-T14 | 5 | 8.1 | 14 | 75 | 101.8 | |
| HFPAD 6R-60-T14 | 6 | 10.1 | 14 | 60 | 100 | |
| HFPAD 6R-100-T20 | 6 | 10.1 | 20 | 100 | 102.8 | |
| HFPAD 3R-30-T10-JHP | 3 | 5.1 | 10 | 30 | 40 | |
| HFPAD 3R-40-T10-JHP | 3 | 5.1 | 10 | 40 | 65 | |
| HFPAD 3R-65-T18-JHP | 3 | 5.1 | 18 | 65 | 99.2 | |
| HFPAD 4R-44-T14-JHP | 4 | 6.9 | 14 | 44 | 58 | |
| HFPAD 4R-58-T14-JHP | 4 | 6.9 | 14 | 58 | 88 | |
| HFPAD 4R-88-T14-JHP | 4 | 6.9 | 14 | 88 | 100.8 | |
| HFPAD 5R-40-T14-JHP | 5 | 8.1 | 14 | 40 | 50 | |
| HFPAD 5R-75-T14-JHP | 5 | 8.1 | 14 | 75 | 101.8 | |
| HFPAD 6R-60-T14-JHP | 6 | 10.1 | 14 | 60 | 100 | |
| HFPAD 6R-100-T20-JHP | 6 | 10.1 | 20 | 100 | 102.8 | |
| Spare Parts | ||||||
| Designation | ||||||
| IH-HFPAD SR M6X20-XT | SR M5-04451 | SR M6X12DIN6912 HW 5.0 | T-20/5 O- | RING 19X2 NBR | OR 5X1N | BLD T20/M7 SW6-SD |
