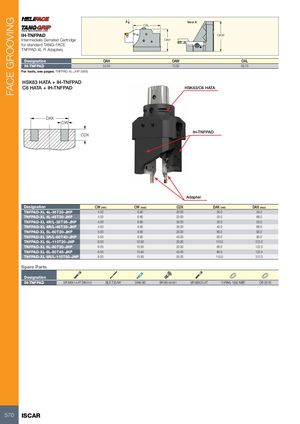

FACE GROOVING A View A OAL IH-TNFPAD OAW Intermediate Serrated Cartridge OAH for standard TANG-FACE TNFPAD-XL R Adapters Designation OAH OAW OAL IH-TNFPAD 54.00 73.00 65.70 For tools, see pages: TNFPAD-XL-JHP (569) HSK63 HATA + IH-TNFPAD C6 HATA + IH-TNFPAD HSK63/C6 HATA DAX CW CDX IH-TNFPAD Adapter Designation CW (min) CW (max) CDX DAX (min) DAX (max) TNFPAD-XL 4L-35T20-JHP 4.00 6.90 20.00 35.0 53.0 TNFPAD-XL 4L-45T20-JHP 4.00 6.90 20.00 45.0 68.0 TNFPAD-XL 4R/L-35T35-JHP 4.00 6.90 35.00 35.0 53.0 TNFPAD-XL 4R/L-45T35-JHP 4.00 6.90 35.00 45.0 68.0 TNFPAD-XL 5L-60T20-JHP 5.00 8.90 20.00 60.0 90.0 TNFPAD-XL 5R/L-60T40-JHP 5.00 8.90 40.00 60.0 90.0 TNFPAD-XL 6L-110T20-JHP 6.00 10.90 20.00 110.0 312.0 TNFPAD-XL 6L-80T20-JHP 6.00 10.90 20.00 80.0 122.0 TNFPAD-XL 6L-80T45-JHP 6.00 10.90 45.00 80.0 122.0 TNFPAD-XL 6R/L-110T50-JHP 6.00 10.90 50.00 110.0 312.0 Spare Parts Designation IH-TNFPAD SR M6X14-XT DIN 912 BLD T20/M7 SW6-SD SR M5-04451 SR M6X20-XT O-RING 19X2 NBR OR 5X1N 570 ISCAR
