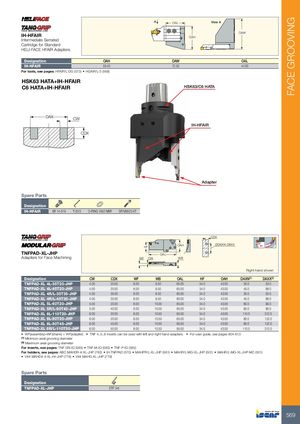

| A | OAL | View A | |||
| IH-HFAIR | OAW | ||||
| Intermediate Serrated | OAH | ||||
| Cartridge for Standard | |||||
| HELI-FACE HFAIR Adapters. |
| Designation | OAH | OAW | OAL |
| IH-HFAIR | 55.40 | 72.50 | 44.90 |
For tools, see pages: HFAIR/L-DG (573) HGAIR/L-3 (568) HSK63 HATA+IH-HFAIR C6 HATA+IH-HFAIR HSK63/C6 HATA
DAX CW
IH-HFAIR
CDX
Adapter
Spare Parts
Designation
IH-HFAIR SR 14-519 T-20/3 O-RING 19X2 NBR SR M6X20-XT
| HF | OAH | CD | X ØDAXN-DAXX | |||||
| TNFPAD-XL-JHP Adapters for Face Machining | WF CW OAL | WB | Right | -hand shown | ||||
| Designation | CW | CDX | WF WB | OAL | HF | OAH | DAXN(1) | DAXX(2) |
| TNFPAD-XL 4L-35T20-JHP | 4.00 | 20.00 | 8.00 9.50 | 65.00 | 34.0 | 43.00 | 35.0 | 53.0 |
| TNFPAD-XL 4L-45T20-JHP | 4.00 | 20.00 | 8.00 9.50 | 65.00 | 34.0 | 43.00 | 45.0 | 68.0 |
| TNFPAD-XL 4R/L-35T35-JHP | 4.00 | 35.00 | 8.00 9.50 | 80.00 | 34.0 | 43.00 | 35.0 | 53.0 |
| TNFPAD-XL 4R/L-45T35-JHP | 4.00 | 35.00 | 8.00 9.50 | 80.00 | 34.0 | 43.00 | 45.0 | 68.0 |
| TNFPAD-XL 5L-60T20-JHP | 5.00 | 20.00 | 8.00 10.00 | 65.00 | 34.0 | 43.00 | 60.0 | 90.0 |
| TNFPAD-XL 5R/L-60T40-JHP | 5.00 | 40.00 | 8.00 10.00 | 85.00 | 34.0 | 43.00 | 60.0 | 90.0 |
| TNFPAD-XL 6L-110T20-JHP | 6.00 | 20.00 | 8.00 10.50 | 65.00 | 34.0 | 43.00 | 110.0 | 312.0 |
| TNFPAD-XL 6L-80T20-JHP | 6.00 | 20.00 | 8.00 10.50 | 65.00 | 34.0 | 43.00 | 80.0 | 122.0 |
| TNFPAD-XL 6L-80T45-JHP | 6.00 | 45.00 | 8.00 10.50 | 90.00 | 34.0 | 43.00 | 80.0 | 122.0 |
| TNFPAD-XL 6R/L-110T50-JHP | 6.00 | 50.00 | 8.00 10.50 | 95.00 | 34.0 | 43.00 | 110.0 | 312.0 |
- WF(assembly)=WF(shank) + WF(adapter)
- TNF 4..5..6 inserts can be used with left and right hand adapters.
- For user guide, see pages 604-613
(1) Minimum axial grooving diameter (2) Maximum axial grooving diameter
For inserts, see pages: TNF GN-IQ (585) TNF-M-IQ (585) TNF-P-IQ (585)
For holders, see pages: ABC MAHDR-#-XL-JHP (782) IH-TNFPAD (570) MAHPR/L-XL-JHP (561) MAHR/L-MG-XL-JHP (501) MAHR/L-MG-XL-JHP-MC (501)
- V## MAHD#-#-XL-##-JHP (778)
- V## MAHD-XL-JHP (779)
Spare Parts
| Designation | |
| TNFPAD-XL-JHP | ETF 3-6 |
