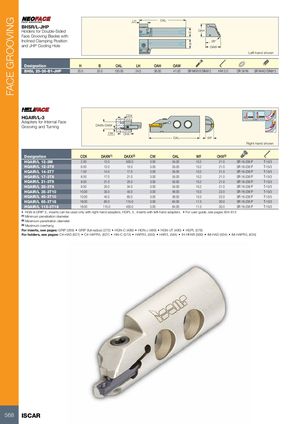

LH OAL
BHSR/L-JHP
Holders for Double-Sided OAH
Face Grooving Blades with
Inclined Clamping Position 26° and JHP Cooling Hole B OAW Left-hand shown
| Designation | H | B | OAL | LH | OAH | OAW | ||||
| BHSL 25-26-B1-JHP | 25.0 | 25.0 | 130.00 | 24.0 | 36.00 | 41.00 | SR M6X18 DIN912 | HW 5.0 | OR 5X1N | SR M4X3 DIN913 |
HGAIR/L-3 CDX
Adapters for Internal Face
Grooving and Turning DAXN-DAXX CW OHX OAL WF Right-hand shown
| Designation | CDX | DAXN(1) | DAXX(2) | CW | OAL | WF | OHX(3) | ||
| HGAIR/L 12-3M | 2.00 | 12.0 | 500.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 12-3T6 | 6.00 | 12.0 | 15.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 14-3T7 | 7.00 | 14.0 | 17.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 17-3T8 | 8.00 | 17.0 | 21.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 21-3T9 | 9.00 | 21.0 | 25.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 25-3T9 | 9.00 | 25.0 | 34.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 35-3T10 | 10.00 | 35.0 | 45.0 | 3.00 | 56.00 | 10.3 | 22.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 45-3T10 | 10.00 | 45.0 | 65.0 | 3.00 | 56.00 | 10.3 | 22.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 65-3T18 | 18.00 | 65.0 | 115.0 | 3.00 | 64.00 | 11.3 | 30.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 115-3T18 | 18.00 | 115.0 | 400.0 | 3.00 | 64.00 | 11.3 | 30.0 | SR 16-236 P | T-15/3 |
- HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang
For inserts, see pages: GRIP (269) GRIP (full radius) (270) HGN-C (489) HGN-J (489) HGN-UT (490) HGPL (578)
For holders, see pages: C#-HAD (627) C#-HAPR/L (627) HAI-C (572) HAPR/L (565) HAR/L (564) IH-HFAIR (569) IM-HAD (634) IM-HAPR/L (634)
