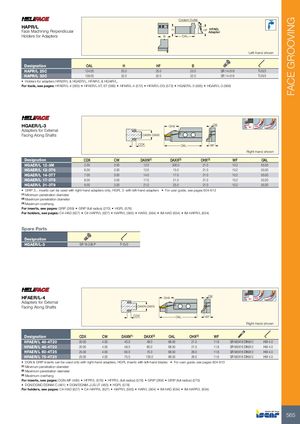

Каталог Iscar отрезка 2022 - страница 107

FACE GROOVING Coolant Outlet HAPR/LFace Machining Perpendicular H HF HFAELAdapter Holders for Adapters B OAL Left-hand shown Designation OAL H HF B HAPR/L 25C 124.00 25.0 25.0 25.0 SR 14-519 T-20/3 HAPR/L 32C 139.00 32.0 32.0 32.0 SR 14-519 T-20/3 • Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L. For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568) HGAER/L-3 OHX CW Adapters for External Facing Along Shafts DAXN-DAXX CDX OAL WF Right-hand shown Designation CDX CW DAXN(1) DAXX(2) OHX(3) WF OAL HGAER/L 12-3M 2.00 3.00 12.0 500.0 21.0 10.2 55.00 HGAER/L 12-3T6 6.00 3.00 12.0 15.0 21.0 10.2 55.00 HGAER/L 14-3T7 7.00 3.00 14.0 17.0 21.0 10.2 55.00 HGAER/L 17-3T8 8.00 3.00 17.0 21.0 21.0 10.2 55.00 HGAER/L 21-3T9 9.00 3.00 21.0 25.0 21.0 10.2 55.00 • GRIP 3... inserts can be used with right-hand adapters only, HGPL 3 with left-hand adapters • For user guide, see pages 604-613 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang For inserts, see pages: GRIP (269) • GRIP (full radius) (270) • HGPL (578) For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634) Spare Parts Designation HGAER/L-3 SR 16-236 P T-15/3 HFAER/L-4 OHX CW Adapters for External Facing Along Shafts DAXN-DAXX CDX OAL WF Right-hand shown Designation CDX CW DAXN(1) DAXX(2) OAL OHX(3) WF HFAER/L 40-4T20 20.00 4.00 40.0 48.0 68.50 21.0 11.6 SR M5X16 DIN912 HW 4.0 HFAER/L 48-4T20 20.00 4.00 48.0 60.0 68.50 21.0 11.6 SR M5X16 DIN912 HW 4.0 HFAER/L 60-4T25 25.00 4.00 60.0 75.0 68.50 26.0 11.6 SR M5X16 DIN912 HW 4.0 HFAER/L 75-4T25 25.00 4.00 75.0 100.0 68.50 26.0 11.6 SR M5X16 DIN912 HW 4.0 • DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 604-613 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang For inserts, see pages: DGN-MF (485) • HFPR/L (576) • HFPR/L (full radius) (576) • GRIP (269) • GRIP (full radius) (270) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • HGPL (578) For holders, see pages: C#-HAD (627) • C#-HAPR/L (627) • HAPR/L (565) • HAR/L (564) • IM-HAD (634) • IM-HAPR/L (634) 565
