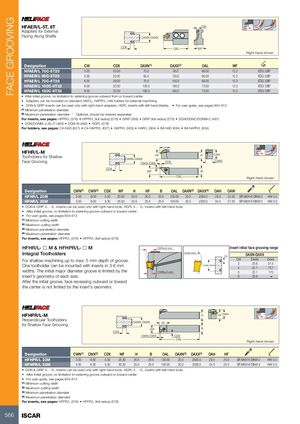

HFAER/L-5T, 6T CW
Adapters for External
Facing Along Shafts
DAXN-DAXX
CDX OAL WF
Right-hand shown
| Designation | CW | CDX | DAXN(1) | DAXX(2) | OAL | WF | |
| HFAER/L 70C-5T25 | 5.00 | 25.00 | 70.0 | 95.0 | 66.00 | 12.2 | EDG 33B* |
| HFAER/L 95C-5T25 | 5.00 | 25.00 | 95.0 | 130.0 | 66.00 | 12.2 | EDG 33B* |
| HFAER/L 70C-6T28 | 6.00 | 28.00 | 70.0 | 100.0 | 69.00 | 12.3 | EDG 33B* |
| HFAER/L 100C-6T32 | 6.00 | 32.00 | 100.0 | 180.0 | 73.00 | 12.3 | EDG 33B* |
| HFAER/L 180C-6T32 | 6.00 | 32.00 | 180.0 | 400.0 | 73.00 | 12.3 | EDG 33B* |
- After initial groove, no limitation to widening groove outward from or toward center
- Adapters can be mounted on standard HAR/L, HAPR/L, HAI holders for external machining
- DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270) DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- DGN-W (482)
- HGPL (578)
For holders, see pages: C#-HAD (627) C#-HAPR/L (627) HAPR/L (565) HAR/L (564) IM-HAD (634) IM-HAPR/L (634)
LH
HFHR/L-M
Toolholders for Shallow HF H OAH
Face Grooving DAXN-DAXX CDX OAW CWN-CWX CDX WF B OAL Right-hand shown
| Designation | CWN(1) | CWX(2) | CDX | WF | H | HF | B | OAL DAXN(3) | DAXX(4) | OAH | OAW | |||
| HFHR/L 20M | 3.00 | 6.00 | 5.30 | 20.00 | 20.0 | 20.0 | 20.0 | 130.00 | 20.0 | 2000.0 | 29.0 | 22.50 | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25M | 3.00 | 6.00 | 5.30 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 20.0 | 2000.0 | 34.0 | 27.50 | SR M6X16 DIN912 | HW 5.0 |
- DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools
- After initial groove, no limitation to widening groove outward or toward center
- For user guide, see pages 604-613
(1) Minimum cutting width (2) Maximum cutting width (3) Minimum penetration diameter (4) Maximum penetration diameter
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576)
HFHR/L- o M & HFHPR/L- o M Insert initial face grooving range
CWX=6 mm
Integral Toolholders
DAXN-DAXX DAXN-DAXX CW
| For shallow machining up to max. 5 mm depth of groove. | CW | DAXN | DAXX | |
| One toolholder can be mounted with inserts in 3-6 mm | 3 | 25.6 | 51.5 | |
| DAXN-DAXX | 4 | 24.1 | 73.7 | |
| widths. The initial major diameter groove is limited by the | 5 | 22.1 | 170 |
CWN=3 mm
insert’s geometry of each size. 6 20.8 ∞
After the initial groove, face recessing outward or toward
the center is not limited by the insert’s geometry.
HFHPR/L-M H HF OAH
Perpendicular Toolholders
for Shallow Face Grooving DAXN-DAXX 25
WF B CDX CWN-CWX CDX OAL Right-hand shown
| Designation | CWN(1) | CWX(2) | CDX | WF | H | B | OAL | DAXN(3) | DAXX(4) | OAH | HF | ||
| HFHPR/L 20M | 3.00 | 6.00 | 5.00 | 25.30 | 20.0 | 20.0 | 130.00 | 20.0 | 2000.0 | 29.0 | 20.0 | SR M6X16 DIN912 | HW 5.0 |
| HFHPR/L 25M | 3.00 | 6.00 | 5.00 | 30.30 | 25.0 | 25.0 | 150.00 | 20.0 | 2000.0 | 34.0 | 25.0 | SR M6X16 DIN912 | HW 5.0 |
- DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools
- After initial groove, no limitation to widening groove outward or toward center
- For user guide, see pages 604-613
(1) Minimum cutting width (2) Maximum cutting width (3) Minimum penetration diameter (4) Maximum penetration diameter
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576)
