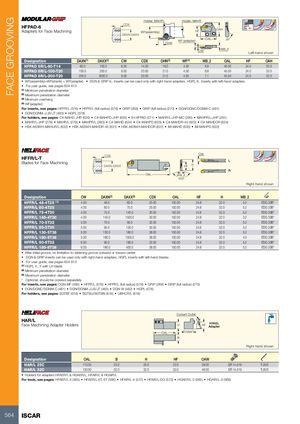

| HFPAD-6 Adapters for Face Machining | DAXN-DA CDX | Holder: MAHPL OHN WF(assembly) XX | OAH OAL HF WB2 WF (adapter) CW Holder: MAHR D | Left- | hand shown | ||
| Designation | DAXN(1) | DAXX(2) | CW | CDX OHN(3) | WF(4) WB2 OAL | HF | OAH |
| HFPAD 6R/L-60-T14 | 60.0 | 100.0 | 6.00 | 14.00 16.0 | 4.50 6.8 40.50 | 24.0 | 32.0 |
| HFPAD 6R/L-100-T20 | 100.0 | 200.0 | 6.00 | 20.00 21.0 | 4.50 6.8 45.50 | 24.0 | 32.0 |
| HFPAD 6R/L-200-T20 | 200.0 | 3000.0 | 6.00 | 20.00 21.0 | 4.50 7.1 45.50 | 24.0 | 32.0 |
- WF(assembly)=WF(shank) + WF(adapter)
- DGN & GRIP 6.. inserts can be used only with right-hand adapters, HGPL 6.. inserts with left-hand adapters
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter (3) Minimum overhang (4) WF(adapter)
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270) DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- HGPL (578)
For holders, see pages: C#-MAHD-JHP (624) C#-MAHPD-JHP (625) IH-HFPAD (571) MAHR/L-JHP-MC (280) MAHPR/L-JHP (281)
- MAHR/L-JHP (279)
- MAHR/L (279)
- MAHPR/L (280)
- C#-MAHD (624)
- C#-MAHPD (625)
- C#-MAHDR-45 (623)
- C#-MAHDOR (624)
- HSK A63WH-MAHUR/L (632)
- HSK A63WH-MAHDR-45 (631)
- HSK A63WH-MAHDOR (631)
- IM-MAHD (633)
- IM-MAHPD (633)
| HFFR/L-T | CDX | CW | L | ||||||||
| Blades for Face Machining | DAXN-DAX | X | OAL | W 1 | B2 50° HF | H | R | Rig | ht-hand shown | ||
| Designation | CW | DAXN(2) | DAXX(3) | CDX | OAL | HF | H | WB2 | |||
| HFFR/L 48-4T25(1) | 4.00 | 48.0 | 60.0 | 25.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 60-4T25 | 4.00 | 60.0 | 75.0 | 25.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 75-4T30 | 4.00 | 75.0 | 140.0 | 30.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 140-4T30 | 4.00 | 140.0 | 1500.0 | 30.00 | 150.00 | 24.8 | 32.0 | 3.2 | EDG 33B | ||
| HFFR/L 70-5T32 | 5.00 | 70.0 | 95.0 | 32.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 95-5T35 | 5.00 | 95.0 | 130.0 | 35.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 130-5T38 | 5.00 | 130.0 | 180.0 | 38.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 180-5T38 | 5.00 | 180.0 | 1500.0 | 38.00 | 150.00 | 24.8 | 32.0 | 4.0 | EDG 33B | ||
| HFFR/L 90-6T32 | 6.00 | 90.0 | 180.0 | 32.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B | ||
| HFFR/L 180-6T38 | 6.00 | 180.0 | 400.0 | 38.00 | 150.00 | 24.8 | 32.0 | 5.2 | EDG 33B |
- After initial groove, no limitation to widening groove outward or toward center.
- DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades
- For user guide, see pages 604-613
(1) HGPL 4...Y with LH blade (2) Minimum penetration diameter (3) Maximum penetration diameter * Optional, should be ordered separately
For inserts, see pages: DGN-MF (485) HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270)
- DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- DGN-W (482)
- HGPL (578)
For holders, see pages: SGTBF (618) SGTBU/SGTBN (616) UBHCR/L (618)
Coolant Outlet
HAR/L
Face Machining Adapter Holders HFAEL
| H | HF | Adapter | |||
| OAL | OAW | ||||
| B | |||||
| Right-hand shown |
| Designation | OAL | B | H | HF | OAW | ||
| HAR/L 25C | 110.00 | 25.0 | 25.0 | 25.0 | 39.00 | SR 14-519 | T-20/3 |
| HAR/L 32C | 130.00 | 32.0 | 32.0 | 32.0 | 46.00 | SR 14-519 | T-20/3 |
- Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L
For tools, see pages: HFAER/L-4 (565) HFAER/L-5T, 6T (566) HFAIR/L-4 (572) HFAIR/L-DG (573) HGAER/L-3 (565) HGAIR/L-3 (568)
