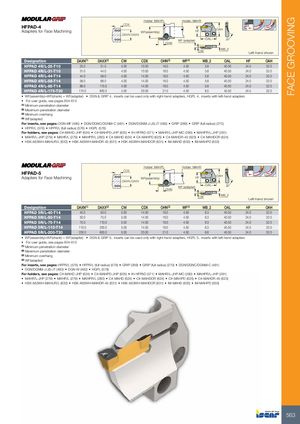

Каталог Iscar отрезка 2022 - страница 105
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
Holder: MAHPL Holder: MAHR HFPAD-4 CDX Adapters for Face Machining OAH WF(assembly) HF OAL D WF (adapter) OHN WB_2 CW Left-hand shown
| Designation | DAXN(1) | DAXX(2) | CW | CDX | OHN(3) | WF(4) | WB_2 | OAL | HF | OAH |
| HFPAD 4R/L-25-T10 | 25.0 | 31.0 | 4.00 | 10.00 | 16.0 | 4.50 | 5.8 | 40.50 | 24.0 | 32.0 |
| HFPAD 4R/L-31-T10 | 31.0 | 44.0 | 4.00 | 10.00 | 16.0 | 4.50 | 5.8 | 40.50 | 24.0 | 32.0 |
| HFPAD 4R/L-44-T14 | 44.0 | 58.0 | 4.00 | 14.00 | 16.0 | 4.50 | 5.8 | 40.50 | 24.0 | 32.0 |
| HFPAD 4R/L-58-T14 | 58.0 | 88.0 | 4.00 | 14.00 | 16.0 | 4.50 | 5.8 | 40.50 | 24.0 | 32.0 |
| HFPAD 4R/L-88-T14 | 88.0 | 175.0 | 4.00 | 14.00 | 16.0 | 4.50 | 5.8 | 40.50 | 24.0 | 32.0 |
| HFPAD 4R/L-175-T20 | 175.0 | 800.0 | 4.00 | 20.00 | 21.0 | 4.50 | 6.5 | 45.50 | 24.0 | 32.0 |
- WF(assembly)=WF(shank) + WF(adapter)
- DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4.. inserts with left-hand adapters
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter (3) Minimum overhang (4) WF(adapter)
For inserts, see pages: DGN-MF (485) DGN/DGNC/DGNM-C (481) DGN/DGNM-J/JS/JT (483) GRIP (269) GRIP (full radius) (270)
- HFPR/L (576)
- HFPR/L (full radius) (576)
- HGPL (578)
For holders, see pages: C#-MAHD-JHP (624) C#-MAHPD-JHP (625) IH-HFPAD (571) MAHR/L-JHP-MC (280) MAHPR/L-JHP (281)
- MAHR/L-JHP (279)
- MAHR/L (279)
- MAHPR/L (280)
- C#-MAHD (624)
- C#-MAHPD (625)
- C#-MAHDR-45 (623)
- C#-MAHDOR (624)
- HSK A63WH-MAHUR/L (632)
- HSK A63WH-MAHDR-45 (631)
- HSK A63WH-MAHDOR (631)
- IM-MAHD (633)
- IM-MAHPD (633)
Holder: MAHPL Holder: MAHR HFPAD-5 CDX Adapters for Face Machining OAH WF(assembly) HF DAXN-DAXX OAL D WF (adapter) OHN WB_2 CW Left-hand shown
| Designation | DAXN(1) | DAXX(2) | CW | CDX | OHN(3) | WF(4) | WB_2 | OAL | HF | OAH |
| HFPAD 5R/L-40-T14 | 40.0 | 50.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-50-T14 | 50.0 | 75.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-75-T14 | 75.0 | 110.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-110-T14 | 110.0 | 200.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-200-T20 | 200.0 | 800.0 | 5.00 | 20.00 | 21.0 | 4.50 | 6.6 | 45.50 | 24.0 | 32.0 |
- WF(assembly)=WF(shank) + WF(adapter)
- DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5.. inserts with left-hand adapters
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter (3) Minimum overhang (4) WF(adapter)
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270) DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- DGN-W (482)
- HGPL (578)
For holders, see pages: C#-MAHD-JHP (624) C#-MAHPD-JHP (625) IH-HFPAD (571) MAHR/L-JHP-MC (280) MAHPR/L-JHP (281)
- MAHR/L-JHP (279)
- MAHR/L (279)
- MAHPR/L (280)
- C#-MAHD (624)
- C#-MAHDOR (624)
- C#-MAHPD (625)
- C#-MAHDR-45 (623)
- HSK A63WH-MAHUR/L (632)
- HSK A63WH-MAHDR-45 (631)
- HSK A63WH-MAHDOR (631)
- IM-MAHD (633)
- IM-MAHPD (633)
