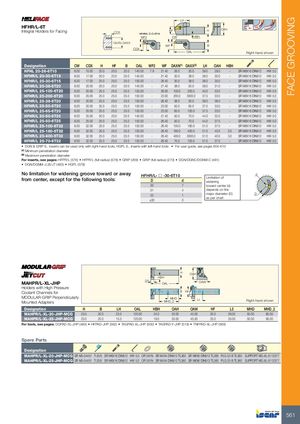

Каталог Iscar отрезка 2022 - страница 103
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
WF2 CW HBH
DAXN-DAXX WF B CDX OAL Right-hand shown
| Designation | CW | CDX | H | HF | B | OAL | WF2 | WF DAXN(1) | DAXX(2) | LH | OAH | HBH | |||
| HFHL 20-26-6T10 | 6.00 | 10.00 | 20.0 | 20.0 | 20.0 | 140.00 | 7.9 | 21.40 | 26.0 | 30.0 | 39.0 | 29.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-30-6T15 | 6.00 | 17.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.40 | 30.0 | 38.0 | 36.0 | 30.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-30-6T15 | 6.00 | 17.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 30.0 | 38.0 | 36.0 | 35.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-38-6T20 | 6.00 | 20.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.40 | 38.0 | 50.0 | 39.0 | 31.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-100-6T20 | 6.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 100.0 | 200.0 | 40.0 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-200-6T20 | 6.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.00 | 200.0 | 3000.0 | 37.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-38-6T20 | 6.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 38.0 | 50.0 | 39.0 | 36.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-50-6T20 | 6.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.00 | 50.0 | 65.0 | 37.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-65-6T20 | 6.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.00 | 65.0 | 100.0 | 37.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-50-6T25 | 6.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.40 | 50.0 | 70.0 | 44.0 | 32.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-50-6T25 | 6.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 50.0 | 70.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-100-6T32 | 6.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 100.0 | 180.0 | 51.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-180-6T32 | 6.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 180.0 | 400.0 | 51.0 | 40.0 | 3.0 | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-400-6T32 | 6.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 400.0 | 3000.0 | 51.0 | 40.0 | 3.0 | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-70-6T32 | 6.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.40 | 70.0 | 100.0 | 51.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
- DGN & GRIP 6.. inserts can be used only with right-hand tools, HGPL 6.. inserts with left-hand tools
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270) DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- HGPL (578)
No limitation for widening groove toward or away
HFHR/L- o -30-6T10 d from center, except for the following tools: Limitation of
| D | d | widening | |
| 30 | 7 | toward center (d) | |
| 31 | 4 | depends on the | |
| 32 | 1 | major diameter (D) | D |
as per chart ≥33 0
H OAH HBH
MAHPR/L-XL-JHP LH OAW
OAL
Holders with High Pressure
Coolant Channels for B HF
MODULAR-GRIP Perpendicularly
MHD L
Mounted Adapters MHD_2 5 Right-hand shown
| Designation | H | B | LH | OAL | HBH | OAH | OAW | HF | L5 | MHD | MHD_2 |
| MAHPR/L-XL-20-JHP-MCG | 20.0 | 20.0 | 23.0 | 120.00 | 24.0 | 53.00 | 45.00 | 20.0 | 29.00 | 50.00 | 85.00 |
| MAHPR/L-XL-25-JHP-MCG | 25.0 | 25.0 | 15.0 | 120.00 | 19.0 | 53.00 | 45.50 | 25.0 | 35.00 | 50.00 | 90.00 |
For tools, see pages: DGPAD-XL-JHP (480) HFPAD-JHP (562) TAGPAD-XL-JHP (500) TAGPAD-Y-JHP (519) TNFPAD-XL-JHP (569)
Spare Parts
Designation
MAHPR/L-XL-20-JHP-MCG SR M5-04451 T-20/5 SR M6X16 DIN912 HW 5.0 OR 5X1N SR M4X4 DIN913 TL360 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SUPPORT MG-XL-5113377 MAHPR/L-XL-25-JHP-MCG SR M5-04451 T-20/5 SR M6X16 DIN912 HW 5.0 OR 5X1N SR M4X4 DIN913 TL360 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SUPPORT MG-XL-5113377
