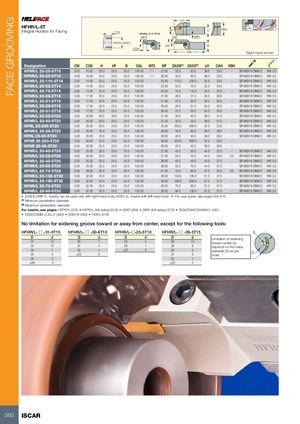

Каталог Iscar отрезка 2022 - страница 102
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| HFHR/L-5T Itl Hld f Fi | H | F LH | H | OA | H | ||||||||||
| negra oers or acng | DAXN CDX | -DAXX | WF CDX HFHR | 2 /L--5T1 | 0 WF | CW | OAL HBH | B | Right-hand | shown | |||||
| Designation | CW | CDX | H | HF | B | OAL | WF2 | WF | DAXN(1) | DAXX(2) | LH | OAH | HBH | ||
| HFHR/L 20-25-5T10 | 5.00 | 10.00 | 20.0 | 20.0 | 20.0 | 140.00 | 7.1 | 21.00 | 25.0 | 30.0 | 38.0 | 28.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-25-5T10 | 5.00 | 10.00 | 25.0 | 25.0 | 25.0 | 150.00 | 7.1 | 26.00 | 25.0 | 30.0 | 38.0 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-110-5T14 | 5.00 | 14.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.50 | 110.0 | 200.0 | 32.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-52-5T14 | 5.00 | 14.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.50 | 52.0 | 75.0 | 32.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-75-5T14 | 5.00 | 14.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.50 | 75.0 | 110.0 | 32.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-28-5T15 | 5.00 | 17.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 28.0 | 31.0 | 34.0 | 30.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-31-5T15 | 5.00 | 17.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 31.0 | 35.0 | 34.0 | 30.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-28-5T15 | 5.00 | 17.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 28.0 | 31.0 | 34.0 | 35.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-31-5T15 | 5.00 | 17.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 31.0 | 35.0 | 34.0 | 35.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-35-5T20 | 5.00 | 20.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 35.0 | 40.0 | 39.0 | 31.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-40-5T20 | 5.00 | 20.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 40.0 | 45.0 | 39.0 | 31.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHL 25-200-5T20 | 5.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 23.50 | 200.0 | 800.0 | 32.5 | 33.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-35-5T20 | 5.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 35.0 | 40.0 | 39.0 | 36.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHL 25-40-5T20 | 5.00 | 20.00 | 25.0 | 25.0 | 25.0 | 140.00 | - | 26.00 | 40.0 | 45.0 | 39.0 | 36.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR 25-200-5T20 | 5.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 200.0 | 800.0 | 32.5 | 33.0 | - | ||
| HFHR 25-40-5T20 | 5.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 40.0 | 45.0 | 39.0 | 36.0 | - | ||
| HFHR/L 20-45-5T25 | 5.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 45.0 | 55.0 | 44.0 | 32.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-55-5T25 | 5.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 55.0 | 70.0 | 44.0 | 35.0 | 3.0 | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-45-5T25 | 5.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 45.0 | 55.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-55-5T25 | 5.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 55.0 | 70.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-70-5T28 | 5.00 | 28.00 | 20.0 | 20.0 | 20.0 | 140.00 | - | 21.00 | 70.0 | 95.0 | 47.0 | 35.0 | 3.0 | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-130-5T32 | 5.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 130.0 | 180.0 | 51.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-180-5T32 | 5.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 180.0 | 800.0 | 51.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-70-5T32 | 5.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 70.0 | 95.0 | 51.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-95-5T32 | 5.00 | 32.00 | 25.0 | 25.0 | 25.0 | 150.00 | - | 26.00 | 95.0 | 130.0 | 51.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
- DGN & GRIP 5.. inserts can be used only with right-hand tools, HGPL 5.. inserts with left-hand tools
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter
For inserts, see pages: HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270) DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- DGN-W (482)
- HGPL (578)
No limitation for widening groove toward or away from center, except for the following tools:
| HFHR/L- | o-31-5T15 | HFHR/L- | o-30-6T10 | HFHR/L-o-25-5T10 | HFHR/L- | o-28-5T15 | d |
| D | d | D | d | D d | D | d | Limitation of widening |
| 31 | 15 | 30 | 7 | 25 4 | 28 | 13 | toward center (d) |
| 32 | 10 | 31 | 4 | 26 1 | 29 | 8 | depends on the major |
| 33 | 7 | 32 | 1 | ≥27 0 | 30 | 5 | diameter (D) as per D |
| 34 | 4 | ≥33 | 0 | 31 | 3 | chart | |
| 35 | 2 | 32 | 1 | ||||
| ≥36 | 0 | ≥33 | 0 |
