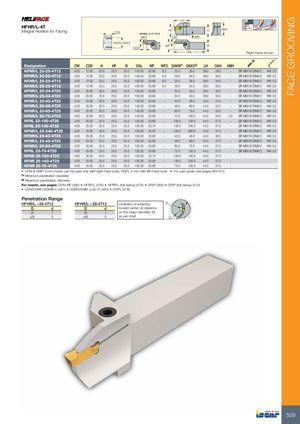

| HFHR/L-4T | LH | O | H | |||||||||||
| HFHR/L 20-25-4T12 Integral Holders for Facing | DAXN CDX | -DAXX | WF CDX HFHR | 2 /L--4T12 | WF CW HF | OAL HBH | B H | Right-hand | shown | |||||
| Designation | CW | CDX | H | HF | B | OAL | WF | WF2 DAXN(1) | DAXX(2) | LH | OAH | HBH | ||
| HFHR/L 20-25-4T12 | 4.00 | 12.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | 6.2 25.0 | 29.0 | 39.0 | 29.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-29-4T12 | 4.00 | 12.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | 6.2 29.0 | 34.0 | 39.0 | 30.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-25-4T12 | 4.00 | 12.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | 6.2 25.0 | 29.0 | 39.0 | 34.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-29-4T12 | 4.00 | 12.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | 6.2 29.0 | 34.0 | 39.0 | 35.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-34-4T20 | 4.00 | 20.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | - 34.0 | 40.0 | 39.0 | 30.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-34-4T20 | 4.00 | 20.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 34.0 | 40.0 | 39.0 | 35.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-40-4T25 | 4.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | - 40.0 | 48.0 | 44.0 | 31.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-48-4T25 | 4.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | - 48.0 | 60.0 | 44.0 | 32.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-60-4T25 | 4.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | - 60.0 | 75.0 | 44.0 | 32.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 20-75-4T25 | 4.00 | 25.00 | 20.0 | 20.0 | 20.0 | 140.00 | 20.60 | - 75.0 | 100.0 | 44.0 | 34.0 | 2.0 | SR M6X16 DIN912 | HW 5.0 |
| HFHL 25-100-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 100.0 | 140.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHL 25-140-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.74 | - 140.0 | 240.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-240-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 240.0 | 800.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-40-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 40.0 | 48.0 | 44.0 | 36.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-48-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 48.0 | 60.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR/L 25-60-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 60.0 | 75.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHL 25-75-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 75.0 | 100.0 | 44.0 | 37.0 | - | SR M6X16 DIN912 | HW 5.0 |
| HFHR 25-100-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.74 | - 100.0 | 140.0 | 44.0 | 37.0 | - | ||
| HFHR 25-140-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.60 | - 140.0 | 240.0 | 44.0 | 37.0 | - | ||
| HFHR 25-75-4T25 | 4.00 | 25.00 | 25.0 | 25.0 | 25.0 | 150.00 | 25.80 | - 75.0 | 100.0 | 44.0 | 37.0 | - |
- DGN & GRIP 4 mm inserts can be used only with right-hand tools, HGPL 4 mm with left-hand tools
- For user guide, see pages 604-613
(1) Minimum penetration diameter (2) Maximum penetration diameter
For inserts, see pages: DGN-MF (485) HFPR/L (576) HFPR/L (full radius) (576) GRIP (269) GRIP (full radius) (270)
- DGN/DGNC/DGNM-C (481)
- DGN/DGNM-J/JS/JT (483)
- HGPL (578)
| HFHR/L-:-25-4T12 Penetration Range | HFHR/L-:-29-4T12 | Limitation of widening | d |
| D d | D d | toward center (d) depends | |
| 25 1 | 29 1 | on the major diameter (D) | |
| ≥26 0 | ≥46 0 | as per chart | D |
