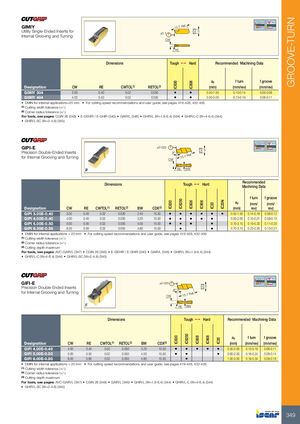

GROOVE-TURN
GIMIY ef.
15.7 R
Utility Single-Ended Inserts for ±0.1
5
Internal Grooving and Turning
CW

RE

Dimensions Tough 1 Hard Recommended Machining Data

ap f turn f groove


IC830

IC808
Designation CW RE CWTOL(1) RETOL(2) (mm) (mm/rev) (mm/rev)
GIMIY 304 3.00 0.40 0.02 0.050 • • 0.50-1.50 0.10-0.14 0.05-0.08
GIMIY 404 4.00 0.40 0.02 0.050 • • 0.50-2.00 0.13-0.19 0.06-0.11
• DMIN for internal applications=20 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
For tools, see pages: CGIN 26 (348) • E-GEHIR / E-GHIR (340) • GAIR/L (346) • GHIR/L (W=1.9-6.4) (344) • GHIR/L-C (W=4-6.4) (344)
• GHIR/L-SC (W=2-4.8) (345)


GIPI-E ±0.025
5
Precision Double-Ended Inserts 8°
Ref.
for Internal Grooving and Turning 15.7
CW

RE BW

Recommended
Dimensions Tough 1 Hard
Machining Data
f turn f groove
IC8250


IC20N
ap
IC830


IC808
IC908
(mm/ (mm/
IC20
Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) rev) rev)
GIPI 3.00E-0.40 3.00 0.40 0.02 0.030 2.40 15.50 • • • • • • 0.50-1.50 0.14-0.18 0.06-0.12
GIPI 4.00E-0.40 4.00 0.40 0.02 0.030 3.20 15.50 • • • • • 0.50-2.00 0.15-0.21 0.08-0.15
GIPI 5.00E-0.50 5.00 0.50 0.02 0.050 4.00 15.50 • • • • 0.70-3.10 0.19-0.33 0.11-0.20
GIPI 6.35E-0.55 6.35 0.55 0.02 0.050 4.80 15.50 • • 0.70-3.10 0.23-0.30 0.13-0.21
• DMIN for internal applications = 20 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: AVC-GAIR/L (347) • CGIN 26 (348) • E-GEHIR / E-GHIR (340) • GAIR/L (346) • GHIR/L (W=1.9-6.4) (344)
• GHIR/L-C (W=4-6.4) (344) • GHIR/L-SC (W=2-4.8) (345)


GIFI-E ±0.025
Precision Double-Ended Inserts 5
8°
for Internal Grooving and Turning Ref.
CW 15.7

RE BW

Dimensions Tough 1 Hard Recommended Machining Data
IC8250


ap f turn f groove
IC830


IC808
IC908
IC20


Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) (mm/rev) (mm/rev)
GIFI 4.00E-0.40 4.00 0.40 0.02 0.050 3.20 15.50 • • • • • 0.50-2.00 0.13-0.19 0.06-0.11
GIFI 5.00E-0.50 5.00 0.50 0.02 0.050 4.00 15.50 • • • 0.60-2.50 0.16-0.24 0.08-0.14
GIFI 6.00E-0.80 6.00 0.80 0.02 0.050 4.80 15.50 • 1.00-3.00 0.19-0.34 0.09-0.18
• DMIN for internal applications = 20 mm • For cutting speed recommendations and user guide, see pages 419-428, 432-436
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: AVC-GAIR/L (347) • CGIN 26 (348) • GAIR/L (346) • GHIR/L (W=1.9-6.4) (344) • GHIR/L-C (W=4-6.4) (344)
• GHIR/L-SC (W=2-4.8) (345)


349
