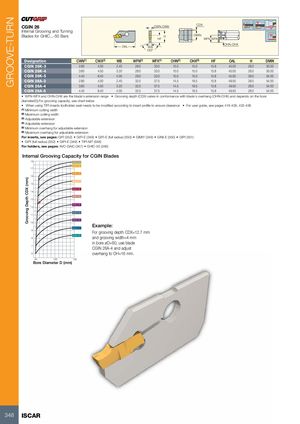

| GIN 26 | CWN-CW | X | CDX | ||||||||
| ternal Grooving and Turning lades for GHIC...-50 Bars | OAL | HF 150° H WB | DMIN | WFN-WFX | OHN-OHX | ||||||
| Designation | CWN(1) | CWX(2) | WB | WFN(3) | WFX(4) | OHN(5 | ) OHX(6) | HF | OAL | H | DMIN |
| CGIN 26K-3 | 2.80 | 4.00 | 2.40 | 28.0 | 33.0 | 10.0 | 15.0 | 15.8 | 45.00 | 26.0 | 50.00 |
| CGIN 26K-4 | 3.60 | 4.50 | 3.20 | 28.0 | 33.0 | 10.0 | 15.0 | 15.8 | 45.00 | 26.0 | 50.00 |
| CGIN 26K-5 | 4.40 | 6.40 | 4.00 | 28.0 | 33.0 | 10.0 | 15.0 | 15.8 | 45.00 | 26.0 | 54.00 |
| CGIN 26A-3 | 2.80 | 4.00 | 2.40 | 32.5 | 37.5 | 14.5 | 19.5 | 15.8 | 49.50 | 26.0 | 54.00 |
| CGIN 26A-4 | 3.60 | 4.50 | 3.20 | 32.5 | 37.5 | 14.5 | 19.5 | 15.8 | 49.50 | 26.0 | 54.00 |
| CGIN 26A-5 | 4.40 | 6.40 | 4.00 | 32.5 | 37.5 | 14.5 | 19.5 | 15.8 | 49.50 | 26.0 | 54.00 |
- WFN-WFX and OHN-OHX are the blade's extension range
- Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore
diameter(D).For grooving capacity, see chart below
- When using TIPI inserts toolholder seat needs to be modified according to insert profile to ensure clearance
- For user guide, see pages 419-428, 432-436
(1) Minimum cutting width (2) Maximum cutting width (3) Adjustable extension (4) Adjustable extension (5) Minimum overhang for adjustable extension (6) Maximum overhang for adjustable extension
For inserts, see pages: GIFI (352) GIFI-E (349) GIFI-E (full radius) (350) GIMIY (349) GINI-E (350) GIPI (351)
- GIPI (full radius) (352)
- GIPI-E (349)
- TIPI-MT (648)
For holders, see pages: AVC-GAIC (347) GHIC-50 (346)
Internal Grooving Capacity for CGIN Blades
18 OH=19.5 OH=19 17 OH=18 16 OH=17 15 OH=16 14 OH=15 13 OH=14 12 OH=13 11 OH=12
| 10 | Example: | |
| OH=11 | ||
| 9 | For grooving depth CDX=12.7 mm | |
| OH=10 | and grooving width=4 mm | |
| 8 | ||
| in bore øD=60, use blade | ||
| 7 | CGIN 26A-4 and adjust | |
| overhang to OH=16 mm. | ||
| 6 | ||
| 50 | 100 150 |
Bore Diameter D (mm)
