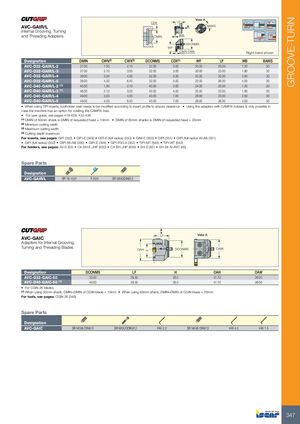

| AVC-GAIR/L Internal Grooving, Turning and Threading Adapters | DMIN CDX | WB LF A DCO CWN-CW WF | View A NMS X BA | WS | Righ | t-hand shown | ||||
| Designation | DMIN | CWN(2) | CWX(3) | DCONMS | CDX(4) | WF | LF | WB | BAWS | |
| AVC-D32-GAIR/L-2 | 37.00 | 1.50 | 2.10 | 32.00 | 3.00 | 20.00 | 23.00 | 1.20 | 30 | |
| AVC-D32-GAIR/L-3 | 37.00 | 2.10 | 3.00 | 32.00 | 3.00 | 20.00 | 23.00 | 1.80 | 30 | |
| AVC-D32-GAIR/L-4 | 39.00 | 3.00 | 4.50 | 32.00 | 5.00 | 22.00 | 23.00 | 2.50 | 30 | |
| AVC-D32-GAIR/L-5 | 39.00 | 4.50 | 6.40 | 32.00 | 5.00 | 22.00 | 26.00 | 4.00 | 30 | |
| AVC-D40-GAIR/L-2(1) | 45.00 | 1.50 | 2.10 | 40.00 | 3.00 | 24.00 | 23.00 | 1.20 | 30 | |
| AVC-D40-GAIR/L-3(1) | 46.00 | 2.10 | 3.00 | 40.00 | 4.00 | 25.00 | 23.00 | 1.80 | 30 | |
| AVC-D40-GAIR/L-4 | 49.00 | 3.00 | 4.50 | 40.00 | 7.00 | 28.00 | 23.00 | 2.50 | 30 | |
| AVC-D40-GAIR/L-5 | 49.00 | 4.50 | 6.40 | 40.00 | 7.00 | 28.00 | 26.00 | 4.00 | 30 |
- When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance
- Using the adapters with CAMFIX holders is only possible in
case the machine has an option for rotating the CAMFIX Axis.
- For user guide, see pages 419-428, 432-436
(1) DMIN of 50mm shank is DMIN of requested head + 10mm DMIN of 60mm shanks is DMIN of requested head + 20mm (2) Minimum cutting width (3) Maximum cutting width (4) Cutting depth maximum
For inserts, see pages: GIFI (352) GIFI-E (349) GIFI-E (full radius) (350) GINI-E (350) GIPI (351) GIPI (full radius W<M) (351)
- GIPI (full radius) (352)
- GIPI (W<M) (350)
- GIPI-E (349)
- GIPI-RX/LX (352)
- TIPI-MT (648)
- TIPI-WT (642)
For holders, see pages: AV-D (93) C#-SH-E-JHP (630) C#-SH-JHP (630) SH-D (92) SH-S#-N-AVC (90)
Spare Parts
Designation
AVC-GAIR/L SR 76-1021 T-20/5 SR M3X3DIN913
| AVC-GAIC Adapters for Internal Grooving, Turning and Threading Blades | DCONM A LF OAH H | S OAW View A | ||
| Designation | DCONMS | LF H | OAH | OAW |
| AVC-D32-GAIC-50 | 32.00 | 29.50 26.0 | 41.70 | 36.00 |
| AVC-D40-GAIC-50(1) | 40.00 | 29.50 26.0 | 41.70 | 36.00 |
- For CGIN 26 blades
(1) When using 50mm shank, DMIN=DMIN of CGIN blade + 10mm When using 60mm shank, DMIN=DMIN of CGIN blade + 20mm
For tools, see pages: CGIN 26 (348)
Spare Parts
Designation
AVC-GAIC SR M3X8 DIN913 SR M5X20DIN912 HW 2.0 SR M4X8 DIN913 HW 4.0 HW 1.5
