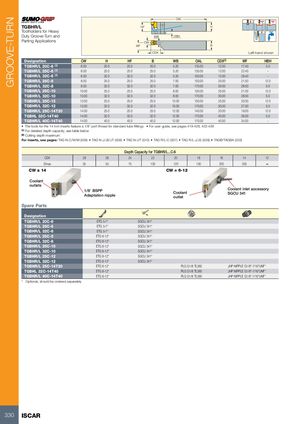

| TGBHR/L | HF | OAL | H | ||||||
| Toolholders for Heavy | |||||||||
| Duty Groove-Turn and Parting Applications | WF CW WB CDX | HBH | B | Le | ft-hand shown | ||||
| Designation | CW | H | HF | B | WB | OAL | CDX(2) | WF | HBH |
| TGBHR/L 20C-6(1) | 6.00 | 20.0 | 20.0 | 20.0 | 5.20 | 135.00 | 12.00 | 17.40 | 5.0 |
| TGBHR/L 25C-6(1) | 6.00 | 25.0 | 25.0 | 25.0 | 5.20 | 135.00 | 12.00 | 22.40 | - |
| TGBHR/L 32C-6(1) | 6.00 | 32.0 | 32.0 | 32.0 | 5.20 | 150.00 | 12.00 | 29.40 | - |
| TGBHR/L 25C-8 | 8.00 | 25.0 | 25.0 | 25.0 | 7.00 | 150.00 | 25.00 | 21.50 | 12.0 |
| TGBHR/L 32C-8 | 8.00 | 32.0 | 32.0 | 32.0 | 7.00 | 170.00 | 30.00 | 28.50 | 5.0 |
| TGBHR/L 25C-10 | 10.00 | 25.0 | 25.0 | 25.0 | 8.00 | 150.00 | 25.00 | 21.00 | 12.0 |
| TGBHR/L 32C-10 | 10.00 | 32.0 | 32.0 | 32.0 | 8.00 | 170.00 | 30.00 | 28.00 | 5.0 |
| TGBHR/L 25C-12 | 12.00 | 25.0 | 25.0 | 25.0 | 10.00 | 150.00 | 25.00 | 20.00 | 12.0 |
| TGBHR/L 32C-12 | 12.00 | 32.0 | 32.0 | 32.0 | 10.00 | 170.00 | 30.00 | 27.00 | 5.0 |
| TGBHR/L 25C-14T20 | 14.00 | 25.0 | 25.0 | 25.0 | 12.00 | 140.00 | 20.00 | 19.00 | 12.0 |
| TGBHL 32C-14T40 | 14.00 | 32.0 | 32.0 | 32.0 | 12.00 | 170.00 | 40.00 | 26.00 | 5.0 |
| TGBHR/L 40C-14T40 | 14.00 | 40.0 | 40.0 | 40.0 | 12.00 | 170.00 | 40.00 | 34.00 | - |
- The tools for the 14 mm inserts feature a 1/8" port thread for standard tube fittings
- For user guide, see pages 419-428, 432-436
(1) For detailed depth capacity, see table below (2) Cutting depth maximum
For inserts, see pages: TAG N-C/W/M (506) TAG N-J/JS/JT (508) TAG N-UT (510) TAG R/L-C (507) TAG R/L-J/JS (509) TAGB/TAGBA (333)
| Depth Cap | acityfor TGB | HR/L...C-6 | |||||||
| CDX | 28 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 |
| Dmax | 35 | 55 | 75 | 100 | 120 | 150 | 200 | 350 | ∞ |
| CW ≥ 14 | CW = 6-12 | ||||||||
| Coolant outlets | 1/8”BS Adapta | PP tion nipple | Coolant outlet | Coola SGC | nt inlet acc U 341 | essory |
Spare Parts
| Designation | ||||
| TGBHR/L 20C-6 | ETG 5-7 | SGCU 341 | ||
| TGBHR/L 25C-6 | ETG 5-7 | SGCU 341 | ||
| TGBHR/L 32C-6 | ETG 5-7 | SGCU 341 | ||
| TGBHR/L 25C-8 | ETG 8-12 | SGCU 341 | ||
| TGBHR/L 32C-8 | ETG 8-12 | SGCU 341 | ||
| TGBHR/L 25C-10 | ETG 8-12 | SGCU 341 | ||
| TGBHR/L 32C-10 | ETG 8-12 | SGCU 341 | ||
| TGBHR/L 25C-12 | ETG 8-12 | SGCU 341 | ||
| TGBHR/L 32C-12 | ETG 8-12 | SGCU 341 | ||
| TGBHR/L 25C-14T20 | ETG 8-12 | PLG G1/8 TL360 | JHP NIPPLE G1/8"-7/16"UNF | |
| TGBHL 32C-14T40 | ETG 8-12 | PLG G1/8 TL360 | JHP NIPPLE G1/8"-7/16"UNF | |
| TGBHR/L 40C-14T40 | ETG 8-12 | PLG G1/8 TL360 | JHP NIPPLE G1/8"-7/16"UNF |
* Optional, should be ordered separately
