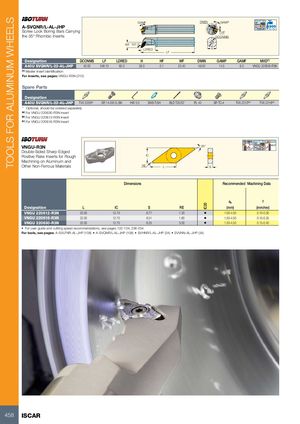

Каталог Iscar обработка канавок 2022 - страница 204

TOOLS FOR ALUMINUM WHEELS IC20 GAMF DMIN GAMP 35° A-SVQNR/L-AL-JHP MAX 107.5º Bar Max Screw Lock Boring Bars Carrying HF the 35° Rhombic Inserts DCONMS WF 107.5˚ LDRED H LF Designation DCONMS LF LDRED H HF WF DMIN GAMP GAMF MIID(1) A40U SVQNR/L-22-AL-JHP 40.00 348.10 60.0 36.0 0.1 23.40 49.00 14.5 6.5 VNGU 220630-R3N (1) Master insert identification For inserts, see pages: VNGU-R3N (210) Spare Parts Designation A40U SVQNR/L-22-AL-JHP TVX 2230(a) SR 14-591/L-SN HW 3.0 SW6-T-SH BLD T20/S7 PL 40 SR TC-4 TVX 2212(b)* TVX 2216(c)* * Optional, should be ordered separately (a) For VNGU 220630-R3N insert (b) For VNGU 220612-R3N insert (c) For VNGU 220616-R3N insert 70°MAX 35° VNGU-R3N 35° MAX 107.5º72.5º107.5º Double-Sided Sharp-Edged Positive Rake Inserts for Rough IC Machining on Aluminum and Other Non-Ferrous Materials RE L S Dimensions Recommended Machining Data ap f Designation L IC S RE (mm) (mm/rev) VNGU 220612-R3N 22.00 12.70 6.77 1.20 • 1.00-4.50 0.10-0.30 VNGU 220616-R3N 22.00 12.70 6.51 1.60 • 1.50-4.50 0.10-0.35 VNGU 220630-R3N 22.00 12.70 6.35 3.00 • 1.50-4.50 0.15-0.40 • For user guide and cutting speed recommendations, see pages 122-134, 236-254 For tools, see pages: A-SVLFNR-AL-JHP (108) • A-SVQNR/L-AL-JHP (108) • SVHNR/L-AL-JHP (34) • SVVNN-AL-JHP (34) 458 ISCAR
