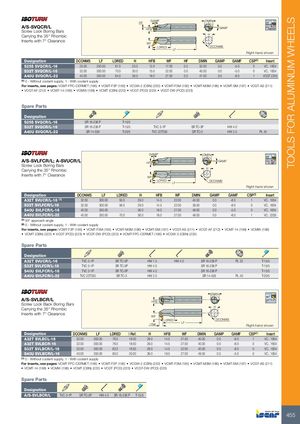

| A/S-SVQCR/L Screw Lock Boring Bars Carrying the 35° Rhombic Inserts with 7° Clearance | WF LF LDRED HFB GAMP HF | H D DMIN | CONMS GAMF | Right-ha | nd shown 107.5º 35° MAX | |||||
| Designation | DCONMS | LF | LDRED | H HFB WF | HF | DMIN | GAMP | GAMF | CSP(1) | Insert |
| S25S SVQCR/L-16 | 25.00 | 250.00 | 61.0 | 23.0 12.0 17.00 | 0.5 | 32.00 | 0.0 | -5.0 | 0 | VC.. 1604 |
| S32T SVQCR/L-16 | 32.00 | 300.00 | 70.0 | 30.0 15.0 22.00 | 0.0 | 40.00 | 0.0 | -5.0 | 0 | VC.. 1604 |
| A40U SVQCR/L-22 | 40.00 | 350.00 | 64.0 | 36.0 18.0 27.00 | 0.0 | 47.50 | 0.0 | -8.0 | 1 | VCGT 2205 |
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211)
- VCGT-AF (212)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
Spare Parts
| Designation | ||||||
| S25S SVQCR/L-16 | SR 16-236 P | T-15/5 | ||||
| S32T SVQCR/L-16 | SR 16-236 P | T-15/5 | TVC 3-1P | SR TC-3P | HW 4.0 | |
| A40U SVQCR/L-22 | SR 14-536 | T-20/5 | TVC 22T330 | SR TC-3 | HW 2.5 | PL 40 |
| A/S-SVLFCR/L; A-SVUC Screw Lock Boring Bars Carrying the 35° Rhombic Inserts with 7° Clearance | R/L | WF LDRED HFB GAMP | LF | H DCONMS DMIN GAMF | Right-ha | nd shown 95º 48° MAX | ||||
| Designation | DCONMS | LF | LDRED | H HFB | WF | DMIN | GAMP | GAMF | CSP(2) | Insert |
| A32T SVUCR/L-16(1) | 32.00 | 300.00 | 50.0 | 29.0 14.5 | 22.00 | 40.00 | 0.0 | -8.0 | 1 | VC.. 1604 |
| S32T SVLFCR/L-16 | 32.00 | 300.00 | 56.0 | 29.0 14.5 | 22.00 | 39.50 | 0.0 | -8.0 | 0 | VC.. 1604 |
| S40U SVLFCR/L-16 | 40.00 | 350.00 | - | 36.0 18.0 | 27.00 | 49.00 | 0.0 | -5.0 | 0 | VC.. 1604 |
| A40U SVLFCR/L-22 | 40.00 | 350.00 | 70.0 | 36.0 18.0 | 27.00 | 48.00 | 0.0 | -8.0 | 1 | VC.. 2205 |
(1) 93° approach angle (2) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-F3P (195) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211) VCGT-AF (212) VCMT-14 (198) VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
- VCMT-FPC-CERMET (196)
- VCGW-2 (CBN) (232)
Spare Parts
| Designation | |||||||
| A32T SVUCR/L-16 | TVC 3-1P | SR TC-3P | HW 1.5 | HW 4.0 | SR 16-236 P | PL 32 | T-15/5 |
| S32T SVLFCR/L-16 | TVC 3-1P | SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | ||
| S40U SVLFCR/L-16 | TVC 3-1P | SR TC-3P | HW 4.0 | SR 16-236 P | T-15/5 | ||
| A40U SVLFCR/L-22 | TVC 22T330 | SR TC-3 | HW 2.5 | SR 14-536 | PL 40 | T-20/5 |
| DMIN | ||||||||||||
| A/S-SVLBCR/L | HFB | 95º | ||||||||||
| Screw Lock Back Boring Bars Carrying the 35° Rhombic Inserts with 7° Clearance | l Ref. WF | LDRED | LF | H DCONMS | Right-han | d shown | ||||||
| Designation | DCONMS | LF | LDRED | l Ref. | H | HFB | WF | DMIN | GAMP | GAMF | CSP(1) | Insert |
| A32T SVLBCL-16 | 32.00 | 300.00 | 76.5 | 18.50 | 29.0 | 14.5 | 27.50 | 40.00 | 0.0 | -8.0 | 1 | VC.. 1604 |
| A32T SVLBCR-16 | 32.00 | 300.00 | 76.5 | 18.50 | 29.0 | 14.5 | 27.50 | 40.00 | 0.0 | -8.0 | 0 | VC.. 1604 |
| S32T SVLBCR/L-16 | 32.00 | 300.00 | 63.2 | 18.50 | 29.0 | 14.5 | 22.00 | 40.00 | 0.0 | -8.0 | 0 | VC.. 1604 |
| S40U SVLBCR/L-16 | 40.00 | 350.00 | 60.0 | 20.00 | 36.0 | 18.0 | 27.00 | 49.50 | 0.0 | -5.0 | 0 | VC.. 1604 |
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
Spare Parts
A/S-SVLBCR/L TVC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5
