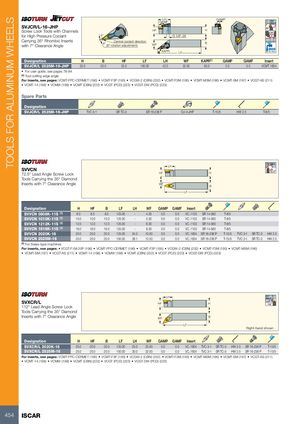

LH GAMP GAMF 50° SVJCR/L-16-JHP MAX
Screw Lock Tools with Channels HF H 93°
for High Pressure Coolant 105° 4° G 1/8"-28 Carrying 35° Rhombic Inserts Central coolant direction 4° (8° rotation adjustment) B
with 7° Clearance Angle WF
KAPR LF Bar Max
| Designation | H | B | HF | LF | LH | WF | KAPR(1) | GAMP | GAMF | Insert |
| SVJCR/L 2525M-16-JHP | 25.0 | 25.0 | 25.0 | 150.00 | 42.0 | 32.00 | 93.0 | 0.0 | 0.0 | VCMT 1604 |
- For user guide, see pages 78-84
(1) Tool cutting edge angle
For inserts, see pages: VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
Spare Parts
Designation
SVJCR/L 2525M-16-JHP TVC 3-1 SR TC-3 SR 16-236 P CU-V-JHP T-15/5 HW 2.5 T-8/5
LH 70°MAX
SVVCN
72.5° Lead Angle Screw Lock HF H 72.5º
Tools Carrying the 35° Diamond Inserts with 7° Clearance Angle WF B LF
| Designation | H | HF | B | LF | LH | WF | GAMP | GAMF | Insert | |||||
| SVVCN 0808K-11S(1) | 8.0 | 8.0 | 8.0 | 125.00 | - | 4.30 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVVCN 1010K-11S(1) | 10.0 | 10.0 | 10.0 | 125.00 | - | 5.30 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVVCN 1212K-11S(1) | 12.0 | 12.0 | 12.0 | 125.00 | - | 6.30 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVVCN 1616K-11S(1) | 16.0 | 16.0 | 16.0 | 125.00 | - | 8.30 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVVCN 2020K-16 | 20.0 | 20.0 | 20.0 | 125.00 | 34.0 | 10.00 | 0.0 | 0.0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 | SR TC-3 | HW 2.5 |
| SVVCN 2525M-16 | 25.0 | 25.0 | 25.0 | 150.00 | 38.1 | 12.50 | 0.0 | 0.0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 | SR TC-3 | HW 2.5 |
(1) For Swiss-type machines
For inserts, see pages: VCGT-F1M-20P (196) VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196)
- VCMT-SM (197)
- VCGT-AS (211)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
LH 31° MAX
SVXCR/L
HF H 112° Lead Angle Screw Lock 112°
Tools Carrying the 35° Diamond
Inserts with 7° Clearance Angle B WF LF Right-hand shown
| Designation | H | HF | B | LF | LH | WF | GAMP GAMF | Insert | ||||||
| SVXCR/L 2020K-16 | 20.0 | 20.0 | 20.0 | 125.00 | 25.0 | 25.00 | 0.0 | 0.0 | VC..1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 |
| SVXCR/L 2525M-16 | 25.0 | 25.0 | 25.0 | 150.00 | 30.0 | 32.00 | 0.0 | 0.0 | VC..1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 |
For inserts, see pages: VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196) VCMT-SM (197) VCGT-AS (211)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
