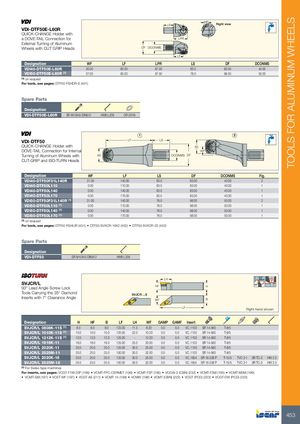

| VDI-DTF50E-L60R QUICK-CHANGE Holder with a DOVE-TAIL Connection for | LS | LPR | WF | Right view | ||||
| External Turning of Aluminum Wheels with CUT GRIP Heads | DF DCONMS | LF | ||||||
| Designation | WF | LF | LPR | LS | DF | DCONMS | ||
| VDI40-DTF50E-L60R | 30.00 | 60.00 | 87.50 | 63.0 | 83.00 | 40.00 | ||
| VDI50-DTF50E-L60R(1) | 37.00 | 60.00 | 87.50 | 78.0 | 98.00 | 50.00 |
(1) on request
For tools, see pages: DTF50 FSHDR-8 (451)
Spare Parts
Designation
VDI-DTF50E-L60R SR M10X45 DIN912 HW8 L208 OR 5X1N
| 1 | 2 | ||||
| VDI-DTF50 QUICK-CHANGE Holder with DOVE-TAIL Connection for Internal Turning of Aluminum Wheels with CUT-GRIP and ISO-TURN Heads | 50 | LF | LS | DCONMS DF 50 | WF |
| Designation | WF | LF | LS | DF | DCONMS Fig. |
| VDI40-DTF50F31L140R | 31.00 | 140.00 | 63.0 | 83.00 | 40.00 2 |
| VDI40-DTF50L110 | 0.00 | 110.00 | 63.0 | 83.00 | 40.00 1 |
| VDI40-DTF50L140 | 0.00 | 140.00 | 63.0 | 83.00 | 40.00 1 |
| VDI40-DTF50L170 | 0.00 | 170.00 | 63.0 | 83.00 | 40.00 1 |
| VDI50-DTF50F31L140R(1) | 31.00 | 140.00 | 78.0 | 98.00 | 50.00 2 |
| VDI50-DTF50L110(1) | 0.00 | 110.00 | 78.0 | 98.00 | 50.00 1 |
| VDI50-DTF50L140(1) | 0.00 | 140.00 | 78.0 | 98.00 | 50.00 1 |
| VDI50-DTF50L170(1) | 0.00 | 170.00 | 78.0 | 98.00 | 50.00 1 |
(1) on request
For tools, see pages: DTF50 FSHIUR (451) DTF50 SVXCR-16X2 (452) DTF50 SVXCR-22 (452)
Spare Parts
| Designation | |
| VDI-DTF50 | SR M10X45 DIN912 HW8 L208 |
| SVJCR/L 93° Lead Angle Screw Lock | LH HF | H | 50° MAX 93° | 105° | ||||||||||
| Tools Carrying the 35° Diamo | nd | SVJCR | ...S | |||||||||||
| Inserts with 7° Clearance Ang | le | WF | L | F | B | Rig | ht-hand | shown | ||||||
| Designation | H | HF | B | LF | LH | WF | GAMP | GAMF | Insert | |||||
| SVJCR/L 0808K-11S(1) | 8.0 | 8.0 | 8.0 | 125.00 | 11.5 | 8.20 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 1010K-11S(1) | 10.0 | 10.0 | 10.0 | 125.00 | 22.0 | 10.20 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 1212K-11S(1) | 12.0 | 12.0 | 12.0 | 125.00 | - | 12.20 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 1616K-11 | 16.0 | 16.0 | 16.0 | 125.00 | 25.0 | 20.00 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 2020K-11 | 20.0 | 20.0 | 20.0 | 125.00 | 30.0 | 25.00 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 2525M-11 | 25.0 | 25.0 | 25.0 | 150.00 | 30.0 | 32.00 | 0.0 | 0.0 | VC..1103 | SR 14-560 | T-8/5 | |||
| SVJCR/L 2020K-16 | 20.0 | 20.0 | 20.0 | 125.00 | 30.0 | 25.00 | 0.0 | 0.0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 | SR TC-3 | HW 2.5 |
| SVJCR/L 2525M-16 | 25.0 | 25.0 | 25.0 | 150.00 | 30.0 | 32.00 | 0.0 | 0.0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 | SR TC-3 | HW 2.5 |
(1) For Swiss-type machines
For inserts, see pages: VCGT-F1M-20P (196) VCMT-FPC-CERMET (196) VCMT-F3P (195) VCGW-2 (CBN) (232) VCMT-F3M (195) VCMT-M3M (196)
- VCMT-SM (197)
- VCET-WF (197)
- VCGT-AS (211)
- VCMT-14 (198)
- VCMW (198)
- VCMT (CBN) (222)
- VCGT (PCD) (223)
- VCGT-DW (PCD) (223)
