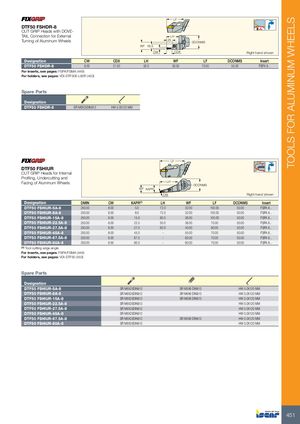

DTF50 FSHDR-8
CUT GRIP Heads with DOVE-
TAIL Connection for External LH Turning of Aluminum Wheels 25 DCONMS WF 18.5
CW CDX Right hand shown
| Designation | CW | CDX | LH | WF | LF | DCONMS | Insert |
| DTF50 FSHDR-8 | 8.00 | 21.50 | 50.0 | 30.00 | 70.00 | 55.00 | FSPA 8... |
For inserts, see pages: FSPA/FSMA (449) For holders, see pages: VDI-DTF50E-L60R (453)
Spare Parts
Designation
DTF50 FSHDR-8 SR M6X25DIN912 HW 5.0X120 MM
| DTF50 FSHIUR CUT GRIP Heads for Internal Profiling, Undercutting and Facing of Aluminum Wheels | KA WF | PR | LF LH CW | DCON | MS | Ri | ght hand shown | ||
| Designation | DMIN | CW | KAPR(1) | LH | WF | LF | DCONMS | Insert | |
| DTF50 FSHIUR-5A-8 | 250.00 | 8.00 | 5.0 | 72.0 | 32.00 | 100.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-8A-8 | 250.00 | 8.00 | 8.0 | 72.0 | 32.00 | 100.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-15A-8 | 250.00 | 8.00 | 15.0 | 80.0 | 36.00 | 100.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-22.5A-8 | 250.00 | 8.00 | 22.5 | 50.0 | 36.00 | 70.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-27.5A-8 | 250.00 | 8.00 | 27.5 | 60.0 | 40.00 | 80.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-45A-8 | 250.00 | 8.00 | 45.0 | - | 55.00 | 70.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-67.5A-8 | 250.00 | 8.00 | 67.5 | - | 60.00 | 70.00 | 50.00 | FSPA 8... | |
| DTF50 FSHIUR-80A-8 | 250.00 | 8.00 | 80.0 | - | 60.00 | 70.00 | 50.00 | FSPA 8... |
(1) Tool cutting edge angle
For inserts, see pages: FSPA/FSMA (449)
For holders, see pages: VDI-DTF50 (453)
Spare Parts
| Designation | |||
| DTF50 FSHIUR-5A-8 | SR M6X25DIN912 | SR M5X6 DIN913 | HW 5.0X120 MM |
| DTF50 FSHIUR-8A-8 | SR M6X25DIN912 | SR M6X6 DIN913 | HW 5.0X120 MM |
| DTF50 FSHIUR-15A-8 | SR M6X25DIN912 | SR M6X6 DIN913 | HW 5.0X120 MM |
| DTF50 FSHIUR-22.5A-8 | SR M6X25DIN912 | HW 5.0X120 MM | |
| DTF50 FSHIUR-27.5A-8 | SR M6X25DIN912 | HW 5.0X120 MM | |
| DTF50 FSHIUR-45A-8 | SR M6X25DIN912 | HW 5.0X120 MM | |
| DTF50 FSHIUR-67.5A-8 | SR M6X25DIN912 | SR M5X6 DIN913 | HW 5.0X120 MM |
| DTF50 FSHIUR-80A-8 | SR M6X25DIN912 | HW 5.0X120 MM |
