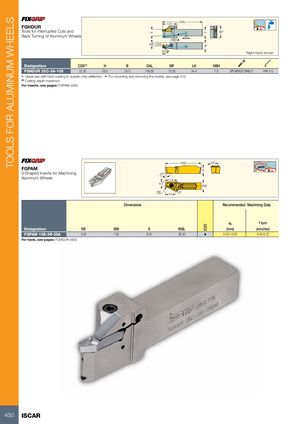

TOOLS FOR ALUMINUM WHEELS IC20 LH OAL FGHDUR Tools for Interrupted Cuts and H H 45° Back Turning of Aluminum Wheels HBH 8 WF CDX B 62° Right-hand shown Designation CDX(1) H B OAL WF LH HBH FGHDUR 25C-3A-10S 22.30 25.0 25.0 150.00 13.30 54.4 7.0 SR M6X25 DIN912 HW 5.0 • Upper jaw with hard coating to sustain chip deflection • For mounting and removing the inserts, see page 419 (1) Cutting depth maximum For inserts, see pages: FGPAM (450) INSL 10° FGPAM S V-Shaped Inserts for Machining 10° Aluminum Wheels 11.8 4.5 BW RE 10 25° Dimensions Recommended Machining Data ap f turn Designation RE BW S INSL (mm) (mm/rev) FGPAM 10S-3R-25A 3.00 7.00 8.20 36.50 • 0.05-12.00 0.40-0.72 For tools, see pages: FGHDUR (450) 450 ISCAR
