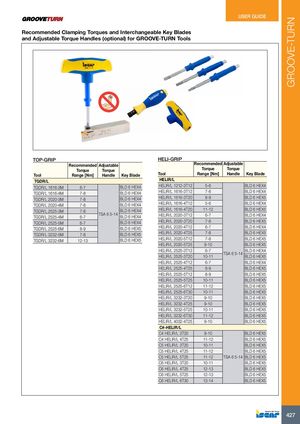

Recommended Clamping Torques and Interchangeable Key Blades
and Adjustable Torque Handles (optional) for GROOVE-TURN Tools
| HELI-GRIP Tool | Recommended Torque Range [Nm] | Adjustable Torque Handle | Key Blade |
| HELIR/L | |||
| HELIR/L 1212-3T12 | 5-6 | BLD 6 HEX4 | |
| HELIR/L 1616-3T12 | 7-8 | BLD 6 HEX4 | |
| HELIR/L 1616-3T20 | 8-9 | BLD 6 HEX5 | |
| HELIR/L 1616-4T12 | 5-6 | BLD 6 HEX4 | |
| HELIR/L 1616-4T20 | 11-12 | BLD 6 HEX5 | |
| HELIR/L 2020-3T12 | 6-7 | BLD 6 HEX4 | |
| HELIR/L 2020-3T20 | 7-8 | BLD 6 HEX5 | |
| HELIR/L 2020-4T12 | 6-7 | BLD 6 HEX4 | |
| HELIR/L 2020-4T25 | 7-8 | BLD 6 HEX5 | |
| HELIR/L 2020-5T12 | 7-8 | BLD 6 HEX5 | |
| HELIR/L 2020-5T25 | 9-10 | BLD 6 HEX5 | |
| HELIR/L 2525-3T12 | 6-7 | TSA 6 514 | BLD 6 HEX4 |
| HELIR/L 2525-3T20 | 10-11 | - | BLD 6 HEX5 |
| HELIR/L 2525-4T12 | 6-7 | BLD 6 HEX4 | |
| HELIR/L 2525-4T25 | 8-9 | BLD 6 HEX5 | |
| HELIR/L 2525-5T12 | 8-9 | BLD 6 HEX5 | |
| HELIR/L 2525-5T25 | 10-11 | BLD 6 HEX5 | |
| HELIR/L 2525-6T12 | 11-12 | BLD 6 HEX5 | |
| HELIR/L 2525-6T30 | 10-11 | BLD 6 HEX5 | |
| HELIR/L 3232-3T20 | 9-10 | BLD 6 HEX5 | |
| HELIR/L 3232-4T25 | 9-10 | BLD 6 HEX5 | |
| HELIR/L 3232-5T25 | 10-11 | BLD 6 HEX5 | |
| HELIR/L 3232-6T30 | 11-12 | BLD 6 HEX5 | |
| HELIR/L 4032-4T25 | 9-10 | BLD 6 HEX5 | |
| C#-HELIR/L | |||
| C4 HELIR/L 3T20 | 9-10 | BLD 6 HEX5 | |
| C4 HELIR/L 4T25 | 11-12 | BLD 6 HEX5 | |
| C5 HELIR/L 3T20 | 10-11 | BLD 6 HEX5 | |
| C5 HELIR/L 4T25 | 11-12 | BLD 6 HEX5 | |
| C5 HELIR/L 5T25 | 11-12 | TSA 6 5-14 | BLD 6 HEX5 |
| C6 HELIR/L 3T20 | 10-11 | BLD 6 HEX5 | |
| C6 HELIR/L 4T25 | 12-13 | BLD 6 HEX5 | |
| C6 HELIR/L 5T25 | 12-13 | BLD 6 HEX5 | |
| C6 HELIR/L 6T30 | 13-14 | BLD 6 HEX5 |
| TOP-GRIP Tool | Recommended Torque Range [Nm] | Adjustable Torque Handle | Key Blade |
| TGDR/L | |||
| TGDR/L 1616-3M | 6-7 | BLD 6 HEX4 | |
| TGDR/L 1616-4M | 7-8 | BLD 6 HEX4 | |
| TGDR/L 2020-3M | 7-8 | BLD 6 HEX4 | |
| TGDR/L 2020-4M | 7-8 | BLD 6 HEX4 | |
| TGDR/L 2525-3M | 7-8 | TSA 6 514 | BLD 6 HEX4 |
| TGDR/L 2525-4M | 6-7 | - | BLD 6 HEX4 |
| TGDR/L 2525-5M | 6-7 | BLD 6 HEX4 | |
| TGDR/L 2525-6M | 8-9 | BLD 6 HEX5 | |
| TGDR/L 3232-5M | 7-8 | BLD 6 HEX5 | |
| TGDR/L 3232-6M | 12-13 | BLD 6 HEX5 |
