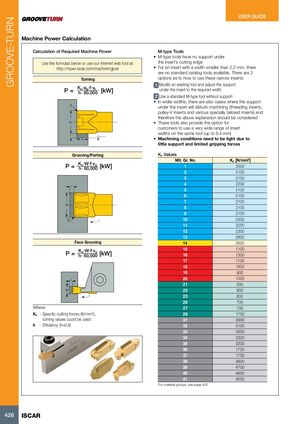

GROOVE-TURNTEXT USER GUIDE Machine Power Calculation Calculation of Required Machine Power M-type Tools • M-type tools have no support under Use the formulas below or use our internet web tool at: the insert’s cutting edge http://mpwr.iscar.com/machinimgpwr • For an insert with a width smaller than 2.2 mm, there are no standard catalog tools available. There are 2 Turning options as to how to use these narrow inserts: P= Kc∙ap∙f∙vch∙ 60,000[kW] 1 Modify an existing tool and adjust the supportunder the insert to the required width 2 Use a standard M-type tool without support • In wider widths, there are also cases where the support R under the insert will disturb machining (threading inserts, pulley-V inserts and various specially tailored inserts) and therefore the above explanation should be considered W • These tools also provide the option for customers to use a very wide range of insert f widths on the same tool (up to 6.4 mm) ap f • Machining conditions need to be light due to little support and limited gripping forces Grooving/Parting Kc Values P= Kc∙W∙f∙vc h∙ 60,000 [kW] Mtl. Gr. No. Kc [N/mm2]12000 2 2100 3 2150 f 4 2200 5 2100 6 2100 7 2100 W 8 2100 9 2100 R f 10 2500 11 3250 12 2300 13 2800 Face Grooving 14 2600 P= Kc∙W∙f∙vc h∙ 60,000 [kW] 15 1100161300 17 1100 18 1800 19 900 f 20 1000 21 500 W 22 800 f 23 800 26 700 Where: 27 700 Kc - Specific cutting forces (N/mm2), 28 1700 turning values could be used 31 3000 h - Efficiency (h≈0.8) 32 3100 33 3300 34 3300 35 3200 36 1700 37 1700 38 4600 39 4700 40 4600 41 4500 For material groups, see page 432 426 ISCAR
