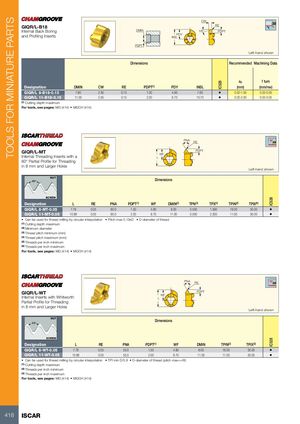

GIQR/L-B18 RE
Internal Back Boring DMIN 18° PDPT
and Profiling Inserts PDY INSL PDPT Left-hand shown
Dimensions Recommended Machining Data
a f turn
p
| Designation | DMIN | CW | RE | PDPT(1) | PDY | INSL | (mm) | (mm/rev) | |
| GIQR/L 8-B18-0.15 | 7.80 | 2.50 | 0.15 | 1.30 | 4.60 | 7.60 | • | 0.02-1.00 | 0.02-0.05 |
| GIQR/L 11-B18-0.15 | 11.00 | 2.50 | 0.15 | 2.30 | 6.70 | 10.70 | • | 0.02-2.00 | 0.02-0.05 |
(1) Cutting depth maximum For tools, see pages: MG (414) MGCH (414)
GIQR/L-MT
Internal Threading Inserts with a WF L
60° Partial Profile for Threading
in 8 mm and Larger Holes
NUT Dimensions 60°
PNA RE PDPT
Left-hand shown
SCREW
| Designation | L | RE | PNA | PDPT(1) | WF | DMIN(2) | TPN(3) | TPX(4) | TPIN(5) | TPIX(6) | |
| GIQR/L 8-MT-0.05 | 7.78 | 0.05 | 60.0 | 1.50 | 4.80 | 8.00 | 0.500 | 1.590 | 16.00 | 50.00 | • |
| GIQR/L 11-MT-0.05 | 10.68 | 0.05 | 60.0 | 2.00 | 6.70 | 11.00 | 0.500 | 2.300 | 11.00 | 50.00 | • |
- Can be used for thread milling by circular interpolation
- Pitch max 0.19xD
- D-diameter of thread
(1) Cutting depth maximum (2) Minimum diameter (3) Thread pitch minimum (mm) (4) Thread pitch maximum (mm) (5) Threads per inch minimum (6) Threads per inch maximum
For tools, see pages: MG (414) MGCH (414)
GIQR/L-WT
Internal Inserts with Whitworth WF L
Partial Profile for Threading
in 8 mm and Larger Holes
NUT Dimensions 55°
PNA RE PDPT
Left-hand shown
SCREW
| Designation | L | RE | PNA | PDPT(1) | WF | DMIN | TPIN(2) | TPIX(3) | |
| GIQR/L 8-WT-0.05 | 7.78 | 0.05 | 55.0 | 1.50 | 4.80 | 8.00 | 16.00 | 50.00 | • |
| GIQR/L 11-WT-0.05 | 10.68 | 0.05 | 55.0 | 2.00 | 6.70 | 11.00 | 11.00 | 50.00 | • |
- Can be used for thread milling by circular interpolation
- TPI min D/5.9
- D-diameter of thread (pitch max<=W)
(1) Cutting depth maximum (2) Threads per inch minimum (3) Threads per inch maximum
For tools, see pages: MG (414) MGCH (414)
