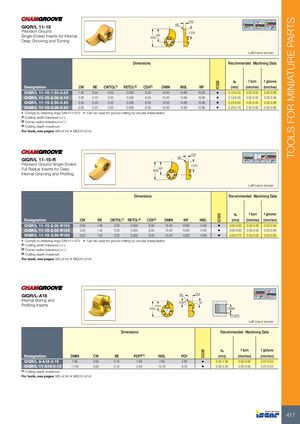

Каталог Iscar обработка канавок 2022 - страница 163

TOOLS FOR MINIATURE PARTS
CW
RE
GIQR/L 11-15
Precision Ground CDX
Single-Ended Inserts for Internal WF
INSL
Deep Grooving and Turning
Left-hand shown

Dimensions Recommended Machining Data

ap f turn f groove


IC528
Designation CW RE CWTOL(1) RETOL(2) CDX(3) DMIN INSL WF (mm) (mm/rev) (mm/rev)
GIQR/L 11-15-1.50-0.05 1.50 0.05 0.02 0.030 6.30 15.00 14.60 10.60 • 0.10-0.40 0.02-0.05 0.02-0.06
GIQR/L 11-15-2.00-0.10 2.00 0.10 0.02 0.030 6.30 15.00 14.60 10.60 • 0.15-0.50 0.02-0.05 0.02-0.06
GIQR/L 11-15-2.50-0.20 2.50 0.20 0.02 0.030 6.30 15.00 14.60 10.60 • 0.25-0.65 0.02-0.05 0.02-0.06
GIQR/L 11-15-3.00-0.20 3.00 0.20 0.02 0.030 6.30 15.00 14.60 10.60 • 0.25-0.75 0.02-0.05 0.02-0.06
• Comply to retaining rings DIN 471/472 • Can be used for groove milling by circular interpolation
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: MG (414) • MGCH (414)


CW
RE
GIQR/L 11-15-R
Precision Ground Single-Ended CDX
Full Radius Inserts for Deep WF
INSL
Internal Grooving and Profiling
Left-hand shown

Dimensions Recommended Machining Data

ap f turn f groove
Designation CW RE CWTOL(1) RETOL(2) CDX(3) DMIN WF INSL IC528 (mm) (mm/rev) (mm/rev)
GIQR/L 11-15-2.00-R100 2.00 1.00 0.02 0.030 6.30 15.00 10.60 14.60 • 0.00-0.50 0.02-0.05 0.02-0.06
GIQR/L 11-15-2.50-R125 2.50 1.25 0.02 0.030 6.30 15.00 10.60 14.60 • 0.00-0.65 0.02-0.05 0.02-0.06
GIQR/L 11-15-3.00-R150 3.00 1.50 0.02 0.030 6.30 15.00 10.60 14.60 • 0.00-0.75 0.02-0.05 0.02-0.06
• Comply to retaining rings DIN 471/472 • Can be used for groove milling by circular interpolation
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: MG (414) • MGCH (414)


CW
GIQR/L-A18 RE
Internal Boring and
PDPT 18°
Profiling Inserts PDY
INSL DMIN
PDPT
Left-hand shown

Dimensions Recommended Machining Data

ap f turn f groove
IC528


Designation DMIN CW RE PDPT(1) INSL PDY (mm) (mm/rev) (mm/rev)
GIQR/L 8-A18-0.15 7.80 3.00 0.15 1.60 7.60 4.60 • 0.02-1.30 0.02-0.05 0.01-0.03
GIQR/L 11-A18-0.15 11.00 3.00 0.15 2.50 10.70 6.70 • 0.02-2.20 0.02-0.05 0.01-0.03
(1) Cutting depth maximum
For tools, see pages: MG (414) • MGCH (414)


417
