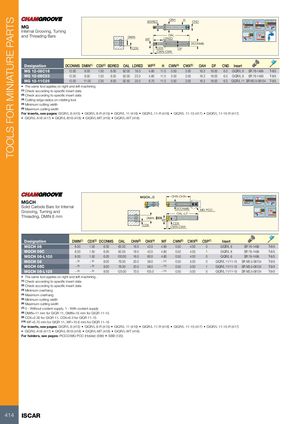

| MG | BDRED | OAH | H C | ND | |||||||||||||
| Internal Grooving, Turning and Threading Bars | DM | IN | WF | L | DRED OAL | ||||||||||||
| CDX | CW CDX | N- | CWX D | D F | CONMS | ||||||||||||
| Designation | DCONMS | DMIN(1) | CDX(2) | BDRED | OAL | LDRED | WF(3) | H | CWN(4) | CWX(5) | OAH | DF | CND | Insert | |||
| MG 12-08C16 | 12.00 | 8.00 | 1.50 | 6.00 | 92.00 | 16.0 | 4.80 | 11 | .0 | 0.50 | 3.00 | 16.3 | 18.00 | 6.0 | GIQR/L 8 SR | 76-1499 | T-8/5 |
| MG 12-08C23 | 12.00 | 8.00 | 1.50 | 6.00 | 92.00 | 23.0 | 4.80 | 11 | .0 | 0.50 | 3.00 | 16.3 | 18.00 | 6.0 | GIQR/L 8 SR | 76-1499 | T-8/5 |
| MG 12-11C25 | 12.00 | 11.00 | 2.30 | 8.00 | 92.50 | 25.0 | 6.70 | 11 | .0 | 0.50 | 3.00 | 16.3 | 18.00 | 6.0 | GIQR/L 11 SR M | 3.5-08134 | T-9/5 |
- The same tool applies on right and left machining
(1) Check according to specific insert data (2) Check according to specific insert data (3) Cutting edge radius on rotating tool (4) Minimum cutting width (5) Maximum cutting width
For inserts, see pages: GIQR/L 8 (415) GIQR/L 8-R (415) GIQR/L 11 (416) GIQR/L 11-R (416) GIQR/L 11-15 (417) GIQR/L 11-15-R (417)
- GIQR/L-A18 (417)
- GIQR/L-B18 (418)
- GIQR/L-MT (418)
- GIQR/L-WT (418)
MGCH
Solid Carbide Bars for Internal
Grooving, Turning and
Threading, DMIN 8 mm
MGCH...C
DMIN CDX
OHN-OHX
DCONMS MG PCO... OAL=LF WF CDX CWN-CWX
| Designation | DMIN(1) | CDX(2) | DCONMS | OAL | OHN(3) | OHX(4) | WF | CWN(5) | CWX(6) | CSP(7) | Insert | ||
| MGCH 06 | 8.00 | 1.50 | 6.00 | 62.00 | 16.0 | 42.0 | 4.80 | 0.50 | 4.00 | 0 | GIQR/L 8 | SR 76-1499 | T-8/5 |
| MGCH 06C | 8.00 | 1.50 | 6.00 | 62.00 | 16.0 | 42.0 | 4.80 | 0.50 | 4.00 | 1 | GIQR/L 8 | SR 76-1499 | T-8/5 |
| MGCH 06-L100 | 8.00 | 1.50 | 6.00 | 100.00 | 16.0 | 80.0 | 4.80 | 0.50 | 4.00 | 0 | GIQR/L 8 | SR 76-1499 | T-8/5 |
| MGCH 08 | -(8) | -(9) | 8.00 | 76.00 | 20.0 | 56.0 | -(10) | 0.50 | 5.00 | 0 | GIQR/L 11/11-15 | SR M3.5-08134 | T-9/5 |
| MGCH 08C | -(8) | -(9) | 8.00 | 76.00 | 20.0 | 56.0 | -(10) | 0.50 | 5.00 | 1 | GIQR/L 11/11-15 | SR M3.5-08134 | T-9/5 |
| MGCH 08-L125 | -(8) | -(9) | 8.00 | 125.00 | 70.0 | 105.0 | -(10) | 0.50 | 5.00 | 0 | GIQR/L 11/11-15 | SR M3.5-08134 | T-9/5 |
- The same tool applies on right and left machining .
(1) Check according to specific insert data (2) Check according to specific insert data (3) Minimum overhang (4) Maximum overhang (5) Minimum cutting width (6) Maximum cutting width (7) 0 - Without coolant supply, 1 - With coolant supply (8) DMIN=11 mm for GIQR 11, DMIN=15 mm for GIQR 11-15 (9) CDX=2.30 for GIQR 11, CDX=6.3 for GIQR 11-15 (10) WF=6.70 mm for GIQR 11, WF=10.6 mm for GIQR 11-15
For inserts, see pages: GIQR/L 8 (415) GIQR/L 8-R (415) GIQR/L 11 (416) GIQR/L 11-R (416) GIQR/L 11-15 (417) GIQR/L 11-15-R (417)
- GIQR/L-A18 (417)
- GIQR/L-B18 (418)
- GIQR/L-MT (418)
- GIQR/L-WT (418)
For holders, see pages: PICCO/MG PCO (Holder) (399) SBB (120)
