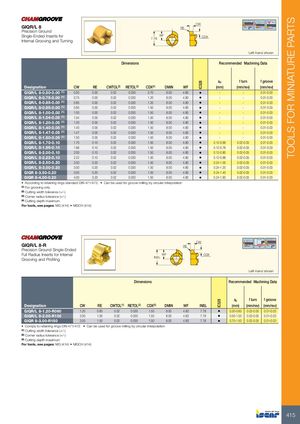

GIQR/L 8 CW
Precision Ground
Single-Ended Inserts for WF CDX
Internal Grooving and Turning 7.78
Left-hand shown
Dimensions Recommended Machining Data
a f turn f groove
p
| Designation | CW | RE | CWTOL(2) | RETOL(3) | CDX(4) | DMIN | WF | (mm) | (mm/rev) | (mm/rev) | |||
| GIQR/L 8-0.50-0.00 (1) | 0.50 | 0.00 | 0.02 | 0.030 | 0.70 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-0.75-0.00 (1) | 0.75 | 0.00 | 0.02 | 0.030 | 1.20 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-0.85-0.00 (1) | 0.85 | 0.00 | 0.02 | 0.030 | 1.20 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-0.95-0.00 (1) | 0.95 | 0.00 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.00-0.00 (1) | 1.00 | 0.00 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.04-0.05 (1) | 1.04 | 0.05 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.20-0.05 (1) | 1.20 | 0.05 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.40-0.05 (1) | 1.40 | 0.05 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.47-0.05 (1) | 1.47 | 0.05 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.50-0.05 (1) | 1.50 | 0.05 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | - | - | 0.01-0.03 | |||
| GIQR/L 8-1.70-0.10 | 1.70 | 0.10 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.12-0.68 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR/L 8-1.96-0.10 | 1.96 | 0.10 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.12-0.78 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR/L 8-2.00-0.10 | 2.00 | 0.10 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.12-0.80 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR/L 8-2.22-0.10 | 2.22 | 0.10 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.12-0.88 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR/L 8-2.50-0.20 | 2.50 | 0.20 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.24-1.00 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR/L 8-3.00-0.20 | 3.00 | 0.20 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.24-1.20 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR 8-3.50-0.20 | 3.50 | 0.20 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.24-1.40 | 0.02-0.05 | 0.01-0.03 | |||
| GIQR 8-4.00-0.20 | 4.00 | 0.20 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 0.24-1.60 | 0.02-0.05 | 0.01-0.03 |
- According to retaining rings standard DIN 471/472.
- Can be used for groove milling by circular interpolation
(1) For grooving only (2) Cutting width tolerance (+/-) (3) Corner radius tolerance (+/-) (4) Cutting depth maximum
For tools, see pages: MG (414) MGCH (414)
GIQR/L 8-R
Precision Ground Single-Ended
Full Radius Inserts for Internal WF Grooving and Profiling INSL
Dimensions
CW RE CDX
Left-hand shown
Recommended Machining Data
a f turn f groove
p
| Designation | CW | RE | CWTOL(1) | RETOL(2) | CDX(3) | DMIN | WF | INSL | (mm) | (mm/rev) | (mm/rev) | ||
| GIQR/L 8-1.20-R060 | 1.20 | 0.60 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 7.78 | 0.30-0.60 | 0.02-0.05 | 0.01-0.03 | ||
| GIQR/L 8-2.00-R100 | 2.00 | 1.00 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 7.78 | 0.50-1.00 | 0.02-0.05 | 0.01-0.03 | ||
| GIQR 8-3.00-R150 | 3.00 | 1.50 | 0.02 | 0.030 | 1.50 | 8.00 | 4.80 | 7.78 | 0.70-1.50 | 0.02-0.05 | 0.01-0.03 |
- Comply to retaining rings DIN 471/472
- Can be used for groove milling by circular interpolation
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum
For tools, see pages: MG (414) MGCH (414)
