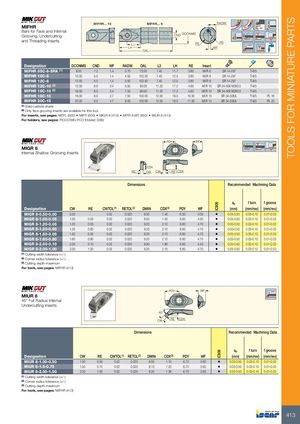

MIFHR... 10 MIFHR... 8 RADW
MIFHR
Bars for Face and Internal
Grooving, Undercutting CND DCONMS
and Threading Inserts
RE RE L 3 LH WF OAL
| Designation | DCONMS | CND | WF | RADW | OAL | L3 | LH | RE | Insert | ||||
| MIFHR 8SC-8-SRK (1) | 8.00 | 1.2 | 1.4 | 3.70 | 75.00 | 7.40 | 11.7 | 3.80 | MI.R 8 | SR 14-297 | T-8/5 | ||
| MIFHR 10C-8 | 10.00 | 5.0 | 1.4 | 4.50 | 102.50 | 7.40 | 12.5 | 3.80 | MI.R 8 | SR 14-297 | T-8/5 | ||
| MIFHR 12C-8 | 12.00 | 5.0 | 1.4 | 5.50 | 102.50 | 7.40 | 12.5 | 3.80 | MI.R 8 | SR 14-297 | T-8/5 | ||
| MIFHR 12C-10 (2) | 12.00 | 6.0 | 2.4 | 5.50 | 90.00 | 11.20 | 17.2 | 4.60 | MI.R 10 | SR 34-506 M3X0.5 | T-9/5 | ||
| MIFHR 16C-10 (2) | 16.00 | 6.0 | 2.4 | 7.50 | 90.00 | 11.20 | 17.2 | 4.60 | MI.R 10 | SR 34-506 M3X0.5 | T-9/5 | ||
| MIFHR 16C-15 | 16.00 | 8.0 | 2.7 | 7.50 | 100.00 | 12.50 | 19.0 | 10.30 | MI.R 15 | SR 34-506/L | T-9/5 | PL 16 | |
| MIFHR 20C-15 | 20.00 | 8.5 | 4.7 | 9.00 | 100.00 | 12.50 | 19.0 | 11.30 | MI.R 15 | SR 34-506/L | T-9/5 | PL 20 |
(1) Solid carbide shank (2) Only face grooving inserts are available for this tool
For inserts, see pages: MEFL (600) • MIFR (600) • MIGR 8 (413) • MITR 8-MT (650) • MIUR 8 (413)
For holders, see pages: PICCO/MG PCO (Holder) (399)
PDY WF
MIGR 8
Internal Shallow Grooving Inserts
CDX
RE CW CW RE CDX
Dimensions Recommended Machining Data
a f turn f groove
p
| Designation | CW | RE | CWTOL(1) | RETOL(2) | DMIN | CDX(3) | PDY | WF | (mm) | (mm/rev) | (mm/rev) | |
| MIGR 8-0.50-0.00 | 0.50 | - | 0.02 | 0.020 | 8.50 | 1.40 | 6.30 | 4.00 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-1.00-0.05 | 1.00 | 0.05 | 0.02 | 0.020 | 8.50 | 1.40 | 6.80 | 4.00 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-1.20-0.05 | 1.20 | 0.05 | 0.02 | 0.020 | 9.20 | 2.10 | 6.80 | 4.70 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-1.20-0.60 | 1.20 | 0.60 | 0.02 | 0.020 | 9.20 | 2.10 | 6.80 | 4.70 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-1.50-0.05 | 1.50 | 0.05 | 0.02 | 0.020 | 9.20 | 2.10 | 6.80 | 4.70 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-1.60-0.80 | 1.60 | 0.80 | 0.02 | 0.020 | 9.20 | 2.10 | 6.80 | 4.70 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-2.00-0.10 | 2.00 | 0.10 | 0.02 | 0.020 | 8.90 | 1.80 | 6.80 | 4.40 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
| MIGR 8-2.00-1.00 | 2.00 | 1.00 | 0.02 | 0.020 | 9.20 | 2.10 | 6.80 | 4.70 | • | 0.05-0.50 | 0.03-0.10 | 0.01-0.03 |
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum
For tools, see pages: MIFHR (413)
MIUR 8
45° Full Radius Internal
Undercutting Inserts
Dimensions
PDY WF
45°
CW RE CDX
Recommended Machining Data
a f turn f groove
p
| Designation | CW | RE | CWTOL(1) | RETOL(2) | DMIN | CDX(3) | PDY | WF | (mm) | (mm/rev) | (mm/rev) | ||
| MIUR 8-1.00-0.50 | 1.00 | 0.50 | 0.02 | 0.020 | 8.00 | 1.10 | 6.70 | 3.60 | • | 0.03-0.50 | 0.03-0.10 | 0.01-0.03 | |
| MIUR 8-1.5-0.75 | 1.50 | 0.75 | 0.02 | 0.020 | 8.10 | 1.20 | 6.70 | 3.60 | • | 0.03-0.50 | 0.03-0.10 | 0.01-0.03 | |
| MIUR 8-2.00-1.00 | 2.00 | 1.00 | 0.02 | 0.020 | 8.30 | 1.36 | 6.70 | 3.60 | • | 0.03-0.50 | 0.03-0.10 | 0.01-0.03 |
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-)
For tools, see pages: MIFHR (413)
