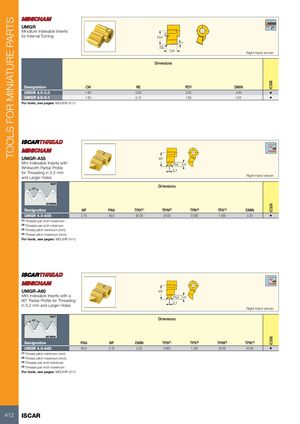

UMGR
Miniature Indexable Inserts
for Internal Turning
3° PDY 7° RE CW Right-hand shown
Dimensions
| Designation | CW | RE | PDY | DMIN | |
| UMGR 4.0-0.0 | 1.63 | 0.00 | 2.20 | 4.00 | • |
| UMGR 4.0-0.1 | 1.63 | 0.10 | 1.60 | 4.00 | • |
For tools, see pages: MGUHR (411)
UMGR-A55 WF
Mini Indexable Inserts with
PNA 0.8
Whitworth Partial Profile
for Threading in 5.2 mm 0.1 and Larger Holes Right-hand shown NUT Dimensions 55°
SCREW
| Designation | WF | PNA | TPIX(1) | TPIN(2) | TPN(3) | TPX (4) | DMIN | |
| UMGR 4.0-A55 | 2.70 | 55.0 | 40.00 | 24.00 | 0.500 | 1.400 | 5.20 | • |
(1) Threads per inch maximum (2) Threads per inch minimum (3) Thread pitch minimum (mm) (4) Thread pitch maximum (mm)
For tools, see pages: MGUHR (411)
UMGR-A60 WF
Mini Indexable Inserts with a
PNA 0.8
60° Partial Profile for Threading
in 5.2 mm and Larger Holes 0.1 Right-hand shown NUT Dimensions 60°
SCREW
| Designation | PNA | WF | DMIN | TPN(1) | TPX(2) | TPIN(3) | TPIX(4) | |
| UMGR 4.0-A60 | 60.0 | 2.70 | 5.20 | 0.600 | 1.250 | 20.00 | 40.00 | • |
(1) Thread pitch minimum (mm) (2) Thread pitch maximum (mm) (3) Threads per inch minimum (4) Threads per inch maximum
For tools, see pages: MGUHR (411)
