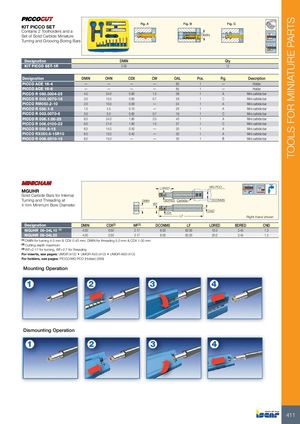

| KIT PICCO SET | Fig. A | Fig. B | Fig. C | KITS | ||
| Contains 2 Toolholders and a Set of Solid Carbide Miniature Turning and Grooving Boring Bars | DMIN | |||||
| Designation | DMIN | Qty | ||||
| KIT PICCO SET-1R | 3.00 | 12 | ||||
| Designation D | MIN | OHN CDX | CW | OAL Pcs. | Fig. | Description |
| PICCOACE 16-4 | — | — — | — | 85 1 | — | Holder |
| PICCO ACE 16-6 | — | — — | — | 85 1 | — | Holder |
| PICCO R 080.0004-25 | 4.0 | 24.0 0.80 | 1.5 | 39 1 | A | Mini carbide bar |
| PICCO R 003.0070-16 | 3.0 | 15.0 0.60 | 0.7 | 29 1 | C | Mini carbide bar |
| PICCO RM050.2-10 | 2.0 | 10.0 0.08 | — | 24 1 | A | Mini carbide bar |
| PICCO R 050.1-5 | 1.0 | 4.5 0.10 | — | 20 1 | A | Mini carbide bar |
| PICCO R 003.0070-5 | 3.0 | 5.0 0.60 | 0.7 | 19 1 | C | Mini carbide bar |
| PICCO R 006.1.00-25 | 6.0 | 24.0 1.80 | 2.0 | 40 1 | A | Mini carbide bar |
| PICCO R 006.0100-22 | 6.0 | 21.0 1.80 | 1.0 | 37 1 | C | Mini carbide bar |
| PICCO R 050.6-15 | 6.0 | 14.0 0.50 | — | 30 1 | A | Mini carbide bar |
| PICCO RX050.6-15R10 | 6.0 | 15.0 0.40 | — | 30 1 | A | Mini carbide bar |
| PICCO R 006.0510-15 | 6.0 | 15.0 — | — | 30 1 | B | Mini carbide bar |
LDRED MG PCO...
MGUHR
Solid Carbide Bars for Internal
| Turning and Threading at | DMIN | BDRED | Carbide | DCONMS | ||
| 4 mm Minimum Bore Diameter | WF | |||||
| CND | ||||||
| CDX | ||||||
| LF | Right-hand shown |
| Designation | DMIN | CDX(2) | WF(3) | DCONMS | LF | LDRED | BDRED | CND | |
| MGUHR 06-04L10 (1) | 4.00 | 0.50 | 2.17 | 6.00 | 62.00 | 10.0 | 3.45 | 1.3 | |
| MGUHR 06-04L20 | 4.00 | 0.50 | 2.17 | 6.00 | 62.00 | 20.0 | 3.45 | 1.3 |
(1) DMIN for turning 4.0 mm & CDX 0.43 mm; DMIN for threading 5.0 mm & CDX 1.00 mm (2) Cutting depth maximum (3) WF=2.17 for turning, WF=2.7 for threading For inserts, see pages: UMGR (412) • UMGR-A55 (412) • UMGR-A60 (412)
For holders, see pages: PICCO/MG PCO (Holder) (399)
