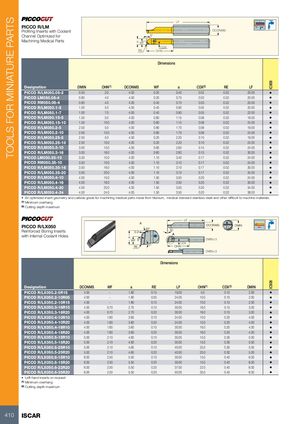

PICCO R/LM
Profiling Inserts with Coolant DCONMS Channel Optimized for 8° Machining Medical Parts a WF CDX RE OHN
Dimensions
| Designation | DMIN | OHN(1) | DCONMS | WF | a | CDX(2) | RE | LF | |
| PICCO R/LM050.05-2 | 0.50 | 2.0 | 4.00 | 0.20 | 0.40 | 0.02 | 0.02 | 20.00 | |
| PICCO LM050.08-4 | 0.80 | 4.0 | 4.00 | 0.20 | 0.70 | 0.03 | 0.02 | 20.00 | |
| PICCO RM050.08-4 | 0.80 | 4.0 | 4.00 | 0.40 | 0.70 | 0.03 | 0.02 | 20.00 | |
| PICCO R/LM050.1-5 | 1.00 | 5.0 | 4.00 | 0.40 | 0.90 | 0.05 | 0.02 | 20.00 | |
| PICCO R/LM050.1-7 | 1.00 | 7.0 | 4.00 | 0.40 | 0.90 | 0.05 | 0.02 | 22.00 | |
| PICCO R/LM050.15-5 | 1.50 | 5.0 | 4.00 | 0.60 | 1.15 | 0.08 | 0.02 | 19.00 | |
| PICCO R/LM050.15-10 | 1.50 | 10.0 | 4.00 | 0.60 | 1.15 | 0.08 | 0.02 | 24.00 | |
| PICCO R/LM050.2-5 | 2.00 | 5.0 | 4.00 | 0.80 | 1.70 | 0.08 | 0.02 | 19.00 | |
| PICCO R/LM050.2-10 | 2.00 | 10.0 | 4.00 | 0.80 | 1.70 | 0.08 | 0.02 | 24.00 | |
| PICCO R/LM050.25-5 | 2.50 | 5.0 | 4.00 | 0.20 | 2.20 | 0.10 | 0.02 | 19.00 | |
| PICCO R/LM050.25-10 | 2.50 | 10.0 | 4.00 | 0.20 | 2.20 | 0.10 | 0.02 | 24.00 | |
| PICCO R/LM050.3-10 | 3.00 | 10.0 | 4.00 | 0.60 | 2.60 | 0.15 | 0.02 | 24.00 | |
| PICCO R/LM050.3-16 | 3.00 | 16.0 | 4.00 | 0.60 | 2.60 | 0.15 | 0.02 | 30.00 | |
| PICCO LM050.35-10 | 3.50 | 10.0 | 4.00 | 1.10 | 3.40 | 0.17 | 0.02 | 24.00 | |
| PICCO RM050.35-10 | 3.50 | 10.0 | 4.00 | 1.10 | 3.10 | 0.17 | 0.02 | 24.00 | |
| PICCO R/LM050.35-16 | 3.50 | 16.0 | 4.00 | 1.10 | 3.10 | 0.17 | 0.02 | 30.00 | |
| PICCO R/LM050.35-20 | 3.50 | 20.0 | 4.00 | 1.10 | 3.10 | 0.17 | 0.02 | 34.00 | |
| PICCO R/LM050.4-10 | 4.00 | 10.0 | 4.00 | 1.50 | 3.50 | 0.20 | 0.02 | 24.00 | |
| PICCO R/LM050.4-16 | 4.00 | 16.0 | 4.00 | 1.50 | 3.50 | 0.20 | 0.02 | 30.00 | |
| PICCO R/LM050.4-20 | 4.00 | 20.0 | 4.00 | 1.50 | 3.50 | 0.20 | 0.02 | 34.00 | |
| PICCO R/LM050.4-24 | 4.00 | 24.0 | 4.00 | 1.50 | 3.50 | 0.20 | 0.02 | 38.00 |
- An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials.
(1) Minimum overhang (2) Cutting depth maximum
LF A
PICCO R/LX050 DCONMS DMIN
Reinforced Boring Inserts 45° 6°
0.2 with Internal Coolant Holes A a
WF 6° DMIN≥3
CDX
RE 7° OHN
DMIN<3
Dimensions
| Designation | DCONMS | WF | a | RE | LF | OHN(1) | CDX(2) | DMIN | |
| PICCO R/LX050.2-5R15 | 4.00 | - | 1.80 | 0.15 | 19.00 | 5.0 | 0.10 | 2.00 | |
| PICCO R/LX050.2-10R05 | 4.00 | - | 1.80 | 0.05 | 24.00 | 10.0 | 0.10 | 2.00 | |
| PICCO R/LX050.2-10R15 | 4.00 | - | 1.80 | 0.15 | 24.00 | 10.0 | 0.10 | 2.00 | |
| PICCO R/LX050.3-16R10 | 4.00 | 0.70 | 2.70 | 0.10 | 30.00 | 16.0 | 0.15 | 3.00 | |
| PICCO R/LX050.3-16R20 | 4.00 | 0.70 | 2.70 | 0.20 | 30.00 | 16.0 | 0.15 | 3.00 | |
| PICCO R/LX050.4-10R10 | 4.00 | 1.60 | 3.60 | 0.10 | 24.00 | 10.0 | 0.20 | 4.00 | |
| PICCO R/LX050.4-10R20 | 4.00 | 1.60 | 3.60 | 0.20 | 24.00 | 10.0 | 0.20 | 4.00 | |
| PICCO R/LX050.4-16R10 | 4.00 | 1.60 | 3.60 | 0.10 | 30.00 | 16.0 | 0.20 | 4.00 | |
| PICCO R/LX050.4-16R20 | 4.00 | 1.60 | 3.60 | 0.20 | 30.00 | 16.0 | 0.20 | 4.00 | |
| PICCO R/LX050.5-15R10 | 5.00 | 2.10 | 4.60 | 0.10 | 30.00 | 15.0 | 0.30 | 5.00 | |
| PICCO R/LX050.5-15R20 | 5.00 | 2.10 | 4.60 | 0.20 | 30.00 | 15.0 | 0.30 | 5.00 | |
| PICCO R/LX050.5-25R10 | 5.00 | 2.10 | 4.60 | 0.10 | 40.00 | 25.0 | 0.30 | 5.00 | |
| PICCO R/LX050.5-25R20 | 5.00 | 2.10 | 4.60 | 0.20 | 40.00 | 25.0 | 0.30 | 5.00 | |
| PICCO R/LX050.6-15R10 | 6.00 | 2.50 | 5.50 | 0.10 | 30.00 | 15.0 | 0.40 | 6.00 | |
| PICCO R/LX050.6-15R20 | 6.00 | 2.50 | 5.50 | 0.20 | 30.00 | 15.0 | 0.40 | 6.00 | |
| PICCO R/LX050.6-22R20 | 6.00 | 2.50 | 5.50 | 0.20 | 37.00 | 22.0 | 0.40 | 6.00 | |
| PICCO R/LX050.6-35R20 | 6.00 | 2.50 | 5.50 | 0.20 | 50.00 | 35.0 | 0.40 | 6.00 |
- Left-hand inserts on request
(1) Minimum overhang
