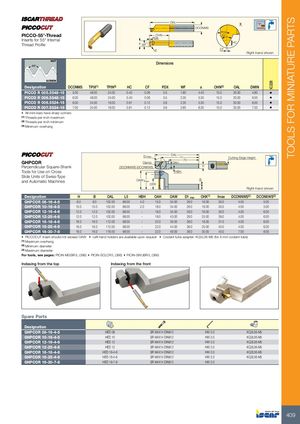

Каталог Iscar обработка канавок 2022 - страница 155
Навигация
Каталог Iscar монолитные концевые фрезы и система multi-master
Фрезерные инструменты Iscar 2026
Каталог Iscar сверла ружейные и для глубокого сверления 2022
Каталог Iscar токарные державки ISO 2022
Каталог Iscar инструмент для обработки алюминиевых колёс
PDX
PICCO-55°-Thread OHN 55°
Inserts for 55° Internal PDX Thread Profile a WF x CF NUT Dimensions 55°
X
HC Right-hand shown
SCREW
| Designation | DCONMS | TPIX(1) | TPIN(2) | HC | CF | PDX | WF | a | OHN(3) | OAL | DMIN | ||
| PICCO R 005.5548-15 | 5.00 | 48.00 | 24.00 | 0.40 | 0.06 | 0.5 | 1.90 | 4.40 | 15.0 | 30.00 | 4.80 | ||
| PICCO R 006.5548-15 | 6.00 | 48.00 | 24.00 | 0.40 | 0.06 | 0.5 | 2.30 | 5.30 | 15.0 | 30.00 | 6.00 | ||
| PICCO R 006.5524-15 | 6.00 | 24.00 | 16.00 | 0.81 | 0.12 | 0.8 | 2.30 | 5.30 | 15.0 | 30.00 | 6.00 | ||
| PICCO R 007.5524-15 | 7.00 | 24.00 | 16.00 | 0.81 | 0.12 | 0.8 | 2.80 | 6.30 | 15.0 | 30.00 | 7.00 |
- All mini-bars have sharp corners
(1) Threads per inch maximum (2) Threads per inch minimum (3) Minimum overhang
OAL D1max L 5 Cutting Edge Height GHPCOR 70 Clamp OAH
Perpendicular Square-Shank DCONNWS-DCONXWS H
Tools for Use on Cross HBH
Slide Units of Swiss-Type
and Automatic Machines OAW f B
max OHX Right-hand shown
Designation H B OAL L5 HBH OAH OAW D1 OHX (1) fmax DCONNWS (2) DCONXWS(3)
max
| GHPCOR 08-16-4-5 | 8.0 | 8.0 | 102.00 | 88.00 | 4.0 | 15.0 | 34.00 | 26.0 | 16.00 | 30.0 | 4.00 | 5.00 |
| GHPCOR 10-16-4-5 | 10.0 | 10.0 | 102.00 | 88.00 | 2.0 | 18.0 | 34.00 | 26.0 | 16.00 | 30.0 | 4.00 | 5.00 |
| GHPCOR 12-16-4-6 | 12.0 | 12.0 | 102.00 | 88.00 | - | 18.0 | 34.00 | 26.0 | 16.00 | 30.0 | 4.00 | 6.00 |
| GHPCOR 12-25-4-6 | 12.0 | 12.0 | 102.00 | 88.00 | - | 18.0 | 43.00 | 26.0 | 25.00 | 39.0 | 4.00 | 6.00 |
| GHPCOR 16-16-4-6 | 16.0 | 16.0 | 112.00 | 98.00 | - | 22.0 | 35.00 | 36.0 | 16.00 | 31.0 | 4.00 | 6.00 |
| GHPCOR 16-25-4-6 | 16.0 | 16.0 | 112.00 | 98.00 | - | 22.0 | 44.00 | 36.0 | 25.00 | 40.0 | 4.00 | 6.00 |
| GHPCOR 16-30-7-8 | 16.0 | 16.0 | 116.00 | 98.00 | - | 22.0 | 49.00 | 36.0 | 30.00 | 45.0 | 7.00 | 8.00 |
- PICCOCUT insert should not exceed OAW
- Left-hand holders are available upon request
- Coolant tube adapter: KQ2L06-M5 (for 6 mm coolant tube)
(1) Maximum overhang (2) Minimum diameter (3) Maximum diameter
For tools, see pages: PICIN-MGSIR/L (386) PICIN-SCLCR/L (386) PICIN-SWUBR/L (386) Indexing from the top Indexing from the front
Spare Parts
Designation
| GHPCOR 08-16-4-5 | HED 08 | SR M4X14 DIN912 | HW 3.0 | KQ2L06-M5 |
| GHPCOR 10-16-4-5 | HED 10 | SR M4X14 DIN912 | HW 3.0 | KQ2L06-M5 |
| GHPCOR 12-16-4-6 | HED 12 | SR M4X14 DIN912 | HW 3.0 | KQ2L06-M5 |
| GHPCOR 12-25-4-6 | HED 12 | SR M4X14 DIN912 | HW 3.0 | KQ2L06-M5 |
| GHPCOR 16-16-4-6 | HED 16-4-6 | SR M4X14 DIN912 | HW 3.0 | KQ2L06-M5 |
| GHPCOR 16-25-4-6 | HED 16-4-6 | SR M4X14 DIN912 | HW 3.0 | KQ2L06-M5 |
| GHPCOR 16-30-7-8 | HED 16-7-8 | SR M4X14 DIN912 | HW 3.0 |
