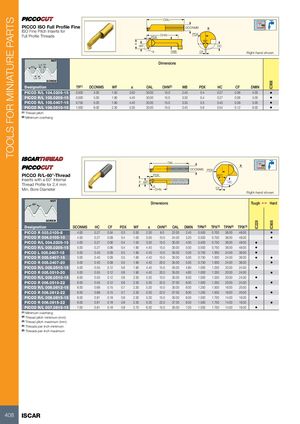

Каталог Iscar обработка канавок 2022 - страница 154
Навигация
Каталог Iscar монолитные концевые фрезы и система multi-master
Фрезерные инструменты Iscar 2026
Каталог Iscar сверла ружейные и для глубокого сверления 2022
Каталог Iscar токарные державки ISO 2022
Каталог Iscar инструмент для обработки алюминиевых колёс
PICCO ISO Full Profile Fine
DCONMS X
ISO Fine Pitch Inserts for
Full Profile Threads OHN PDX
PDX 60° a WF HC
X WB CF Right-hand shown
NUT Dimensions 1/4 TP 60°
1/8 TP SCREW
| Designation | TP(1) | DCONMS | WF | a | OAL | OHN (2) | WB | PDX | HC | CF | DMIN | ||
| PICCO R/L 104.0205-15 | 0.500 | 5.00 | 1.50 | 3.50 | 30.00 | 15.0 | 2.40 | 0.4 | 0.27 | 0.06 | 4.00 | • | |
| PICCO R/L 105.0205-15 | 0.500 | 5.00 | 1.90 | 4.40 | 30.00 | 15.0 | 3.30 | 0.4 | 0.27 | 0.06 | 5.00 | • | |
| PICCO R/L 105.0407-15 | 0.750 | 5.00 | 1.90 | 4.40 | 30.00 | 15.0 | 3.30 | 0.5 | 0.40 | 0.09 | 5.00 | • | |
| PICCO R/L 106.0510-15 | 1.000 | 6.00 | 2.30 | 5.30 | 30.00 | 15.0 | 3.40 | 0.6 | 0.54 | 0.12 | 6.00 | • |
(1) Thread pitch (2) Minimum overhang
OAL DCONMS PDX
PICCO R/L-60°-Thread PDX 60°
Inserts with a 60° Internal
a WF HC
Thread Profile for 2.4 mm
x
Min. Bore Diameter OHN CF
NUT Dimensions 60°
X
Right-hand shown
Tough 1 Hard
SCREW
| Designation | DCONMS | HC | CF | PDX | WF | a | OHN(1) | OAL | DMIN TPN(2) | TPX (3) | TPIN(4) | TPIX(5) | |||
| PICCO R 003.0105-8 | 4.00 | 0.27 | 0.04 | 0.3 | 0.30 | 2.30 | 8.0 | 22.00 | 2.40 | 0.500 | 0.700 | 36.00 | 48.00 | • | |
| PICCO R 004.0105-10 | 4.00 | 0.27 | 0.09 | 0.4 | 1.00 | 3.00 | 10.0 | 24.00 | 3.20 | 0.500 | 0.750 | 36.00 | 48.00 | • | |
| PICCO R/L 004.0205-15 | 4.00 | 0.27 | 0.06 | 0.4 | 1.50 | 3.50 | 15.0 | 30.00 | 4.00 | 0.500 | 0.750 | 36.00 | 48.00 | • | |
| PICCO R/L 005.0205-15 | 5.00 | 0.27 | 0.06 | 0.4 | 1.90 | 4.40 | 15.0 | 30.00 | 5.00 | 0.500 | 0.750 | 36.00 | 48.00 | • | |
| PICCO L 005.0407-15 | 5.00 | 0.40 | 0.09 | 0.5 | 1.90 | 4.40 | 15.0 | 30.00 | 5.00 | 0.750 | 1.000 | 24.00 | 36.00 | • | |
| PICCO R 005.0407-15 | 5.00 | 0.40 | 0.09 | 0.5 | 1.90 | 4.40 | 15.0 | 30.00 | 5.00 | 0.750 | 1.000 | 24.00 | 36.00 | • | • |
| PICCO R 005.0407-20 | 5.00 | 0.40 | 0.09 | 0.5 | 1.90 | 4.40 | 20.0 | 35.00 | 5.00 | 0.750 | 1.000 | 24.00 | 36.00 | • | |
| PICCO R/L 005.0510-15 | 5.00 | 0.55 | 0.12 | 0.6 | 1.90 | 4.40 | 15.0 | 30.00 | 4.80 | 1.000 | 1.250 | 20.00 | 24.00 | • | |
| PICCO R 005.0510-20 | 5.00 | 0.55 | 0.12 | 0.6 | 1.90 | 4.40 | 20.0 | 35.00 | 4.80 | 1.000 | 1.250 | 20.00 | 24.00 | • | |
| PICCO R/L 006.0510-15 | 6.00 | 0.55 | 0.12 | 0.6 | 2.30 | 5.30 | 15.0 | 30.00 | 6.00 | 1.000 | 1.250 | 20.00 | 24.00 | • | |
| PICCO R 006.0510-22 | 6.00 | 0.55 | 0.12 | 0.6 | 2.30 | 5.30 | 22.0 | 37.00 | 6.00 | 1.000 | 1.250 | 20.00 | 24.00 | • | |
| PICCO R/L 006.0612-15 | 6.00 | 0.68 | 0.15 | 0.7 | 2.30 | 5.30 | 15.0 | 30.00 | 6.00 | 1.250 | 1.500 | 16.00 | 20.00 | • | |
| PICCO R 006.0612-22 | 6.00 | 0.68 | 0.15 | 0.7 | 2.30 | 5.30 | 22.0 | 37.00 | 6.00 | 1.250 | 1.500 | 16.00 | 20.00 | • | |
| PICCO R/L 006.0815-15 | 6.00 | 0.81 | 0.18 | 0.8 | 2.30 | 5.30 | 15.0 | 30.00 | 6.00 | 1.500 | 1.750 | 14.00 | 16.00 | • | |
| PICCO R 006.0815-22 | 6.00 | 0.81 | 0.18 | 0.8 | 2.30 | 5.30 | 22.0 | 37.00 | 6.00 | 1.500 | 1.750 | 14.00 | 16.00 | • | |
| PICCO R/L 007.0815-15 | 7.00 | 0.81 | 0.18 | 0.8 | 2.70 | 6.30 | 15.0 | 30.00 | 7.00 | 1.500 | 1.750 | 14.00 | 16.00 | • |
(1) Minimum overhang (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch minimum (5) Threads per inch maximum
