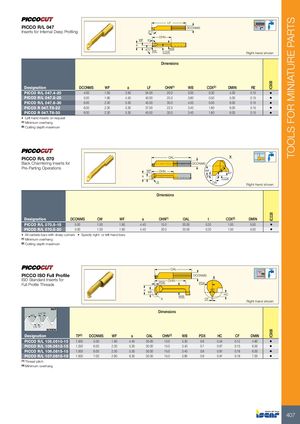

PICCO R/L 047
Inserts for Internal Deep Profiling 5° OHN WF 8° a 47° WB RE CDX Right-hand shown
Dimensions
| Designation | DCONMS | WF | a | LF | OHN(1) | WB | CDX(2) | DMIN | RE | |
| PICCO R/L 047.4-20 | 4.00 | 1.50 | 3.50 | 34.00 | 20.0 | 3.00 | 0.30 | 4.00 | 0.15 | |
| PICCO R/L 047.5-25 | 5.00 | 1.90 | 4.40 | 40.00 | 25.0 | 3.80 | 0.50 | 5.00 | 0.15 | |
| PICCO R/L 047.6-30 | 6.00 | 2.30 | 5.30 | 45.00 | 30.0 | 4.50 | 0.50 | 6.00 | 0.15 | |
| PICCO R 047.T6-22 | 6.00 | 2.30 | 5.30 | 37.00 | 22.0 | 3.40 | 1.80 | 6.00 | 0.15 | |
| PICCO R 047.T6-30 | 6.00 | 2.30 | 5.30 | 45.00 | 30.0 | 3.40 | 1.80 | 6.00 | 0.15 |
- Left hand inserts on request
(1) Minimum overhang (2) Cutting depth maximum
PICCO R/L 070 OAL X
Back Chamfering Inserts for DCONMS
Pre-Parting Operations
WF OHN WF
45°
a 8° t
CDX X CW Right-hand shown
Dimensions
| Designation | DCONMS | CW | WF | a | OHN(1) | OAL | t | CDX(2) | DMIN | ||
| PICCO R/L 070.5-15 | 5.00 | 1.00 | 1.90 | 4.40 | 15.0 | 30.00 | 0.20 | 1.00 | 5.00 | ||
| PICCO R/L 070.5-20 | 5.00 | 1.00 | 1.90 | 4.40 | 20.0 | 35.00 | 0.20 | 1.00 | 5.00 |
- All carbide bars with sharp corners
- Specify right- or left-hand bars
(1) Minimum overhang (2) Cutting depth maximum
OAL PICCO ISO Full Profile DCONMS ISO Standard Inserts for X PDX OHN Full Profile Threads PDX a 60° WF HC WB X CF Right-hand shown NUT Dimensions 1/4 TP 60°
1/8 TP SCREW
| Designation | TP(1) | DCONMS | WF | a | OAL | OHN(2) | WB | PDX | HC | CF | DMIN | ||
| PICCO R/L 105.0510-15 | 1.000 | 5.00 | 1.90 | 4.40 | 30.00 | 15.0 | 3.30 | 0.6 | 0.54 | 0.12 | 4.80 | ||
| PICCO R/L 106.0612-15 | 1.250 | 6.00 | 2.30 | 5.30 | 30.00 | 15.0 | 3.40 | 0.7 | 0.67 | 0.15 | 6.00 | ||
| PICCO R/L 106.0815-15 | 1.500 | 6.00 | 2.30 | 5.30 | 30.00 | 15.0 | 3.40 | 0.8 | 0.81 | 0.18 | 6.00 | ||
| PICCO R/L 107.0815-15 | 1.500 | 7.00 | 2.80 | 6.30 | 30.00 | 15.0 | 3.80 | 0.8 | 0.81 | 0.18 | 7.00 |
(1) Thread pitch (2) Minimum overhang
