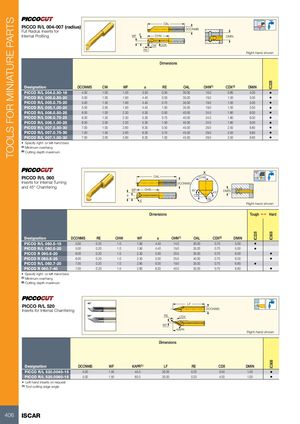

PICCO R/L 004-007 (radius) OAL Full Radius Inserts for DCONMS Internal Profiling a
WF OHN DMIN
CW CDX RE Right-hand shown
Dimensions
| Designation | DCONMS | CW | WF | a | RE | OAL | OHN(1) | CDX(2) | DMIN | |
| PICCO R/L 004.0.50-16 | 4.00 | 1.00 | 1.50 | 3.50 | 0.50 | 30.00 | 15.0 | 0.80 | 4.00 | |
| PICCO R/L 005.0.50-20 | 5.00 | 1.00 | 1.90 | 4.40 | 0.50 | 35.00 | 19.0 | 1.00 | 5.00 | |
| PICCO R/L 005.0.75-20 | 5.00 | 1.50 | 1.90 | 4.40 | 0.75 | 35.00 | 19.0 | 1.00 | 5.00 | |
| PICCO R/L 005.1.00-20 | 5.00 | 2.00 | 1.90 | 4.40 | 1.00 | 35.00 | 19.0 | 1.00 | 5.00 | |
| PICCO R/L 006.0.50-25 | 6.00 | 1.00 | 2.30 | 5.30 | 0.50 | 40.00 | 24.0 | 1.80 | 6.00 | |
| PICCO R/L 006.0.75-25 | 6.00 | 1.50 | 2.30 | 5.30 | 0.75 | 40.00 | 24.0 | 1.80 | 6.00 | |
| PICCO R/L 006.1.00-25 | 6.00 | 2.00 | 2.30 | 5.30 | 1.00 | 40.00 | 24.0 | 1.80 | 6.00 | |
| PICCO R/L 007.0.50-30 | 7.00 | 1.00 | 2.80 | 6.30 | 0.50 | 45.00 | 29.0 | 2.50 | 6.80 | |
| PICCO R/L 007.0.75-30 | 7.00 | 1.50 | 2.80 | 6.30 | 0.75 | 45.00 | 29.0 | 2.50 | 6.80 | |
| PICCO R/L 007.1.00-30 | 7.00 | 2.00 | 2.80 | 6.30 | 1.00 | 45.00 | 29.0 | 2.50 | 6.80 |
- Specify right- or left-hand bars
(1) Minimum overhang (2) Cutting depth maximum
PICCO R/L 060
Inserts for Internal Turning
and 45° Chamfering
X OAL CHW DCONMS
WF OHN 45° DMIN
45° a CDX X RE Right-hand shown
Dimensions Tough 1 Hard
| Designation | DCONMS | RE | CHW | WF | a | OHN(1) | OAL | CDX(2) | DMIN | ||
| PICCO R/L 060.5-15 | 5.00 | 0.20 | 1.0 | 1.90 | 4.40 | 14.0 | 30.00 | 0.70 | 5.00 | ||
| PICCO R/L 060.5-20 | 5.00 | 0.20 | 1.0 | 1.90 | 4.40 | 19.0 | 35.00 | 0.70 | 5.00 | ||
| PICCO R 060.6-20 | 6.00 | 0.20 | 1.0 | 2.30 | 5.30 | 20.0 | 35.00 | 0.70 | 6.00 | ||
| PICCO R 060.6-25 | 6.00 | 0.20 | 1.0 | 2.30 | 5.30 | 25.0 | 40.00 | 0.70 | 6.00 | ||
| PICCO R/L 060.7-20 | 7.00 | 0.20 | 1.0 | 2.80 | 6.30 | 19.0 | 35.00 | 0.70 | 6.80 | ||
| PICCO R 060.7-40 | 7.00 | 0.20 | 1.0 | 2.80 | 6.30 | 40.0 | 55.00 | 0.70 | 6.80 |
- Specify right- or left-hand bars
(1) Minimum overhang (2) Cutting depth maximum
PICCO R/L 520 LF Inserts for Internal Chamfering DCONMS RE CDX WF KAPR Right-hand shown
Dimensions
| Designation | DCONMS | WF | KAPR(1) | LF | RE | CDX | DMIN | ||
| PICCO R/L 520.0045-15 | 5.00 | 1.50 | 45.0 | 30.00 | 0.20 | 3.50 | 1.00 | ||
| PICCO R/L 520.0060-15 | 5.00 | 1.50 | 60.0 | 30.00 | 0.20 | 4.00 | 1.00 |
- Left hand inserts on request
(1) Tool cutting edge angle
